Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Wheel huosing - Mudguard
Swinging arm
1
2
2
3
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
19
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
32
33
1
Complete swinging arm on frame side
669133
$61,16 Unit Price incl. VAT
2
Roller cage
56127R
$5,55 Unit Price incl. VAT
3
Bush
597317
$0,92 Unit Price incl. VAT
4
Hex screw
667441
$9,41 Unit Price incl. VAT
5
Flat washer
178790
$0,51 Unit Price incl. VAT
6
Spacer
CM067805
$15,31 Unit Price incl. VAT
7
Threaded bush
597774
$15,31 Unit Price incl. VAT
8
Nut m22x2 h=8
564611
$3,65 Unit Price incl. VAT
9
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
10
Complete swinging arm on engine side
667786
$138,96 Unit Price incl. VAT
11
Bush
597317
$0,92 Unit Price incl. VAT
12
Roller cage
56127R
$5,55 Unit Price incl. VAT
13
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
13
screw
597081
$5,20 Unit Price incl. VAT
14
Flat washer
178790
$0,51 Unit Price incl. VAT
15
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
16
Left silent block support plate with u.p.
669210
Not Available
17
Right silent block support plate with u.p.
669215
$40,19 Unit Price incl. VAT
18
M14x1.5 spring
649267
$22,46 Unit Price incl. VAT
19
Silent-block
669208
$8,37 Unit Price incl. VAT
20
Spacer
665837
$15,31 Unit Price incl. VAT
21
Snap ring
006420
$0,19 Unit Price incl. VAT
22
Spacer
598878
$12,36 Unit Price incl. VAT
23
Nut M14x1,5
006844
$2,97 Unit Price incl. VAT
23
Nut M14x1,5
827116
$1,60 Unit Price incl. VAT
24
Hex socket screw
597893
$0,67 Unit Price incl. VAT
25
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
26
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
27
Change gear tie rod compl.
669270
$34,33 Unit Price incl. VAT
28
Sil.block
880343
$11,77 Unit Price incl. VAT
29
Plain washer 12,5x34x3
227199
$3,65 Unit Price incl. VAT
30
Lower buffer
178149
$1,41 Unit Price incl. VAT
31
Washer 10,3x38x3
179326
$3,65 Unit Price incl. VAT
32
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
33
Hex screw
668329
$0,82 Unit Price incl. VAT

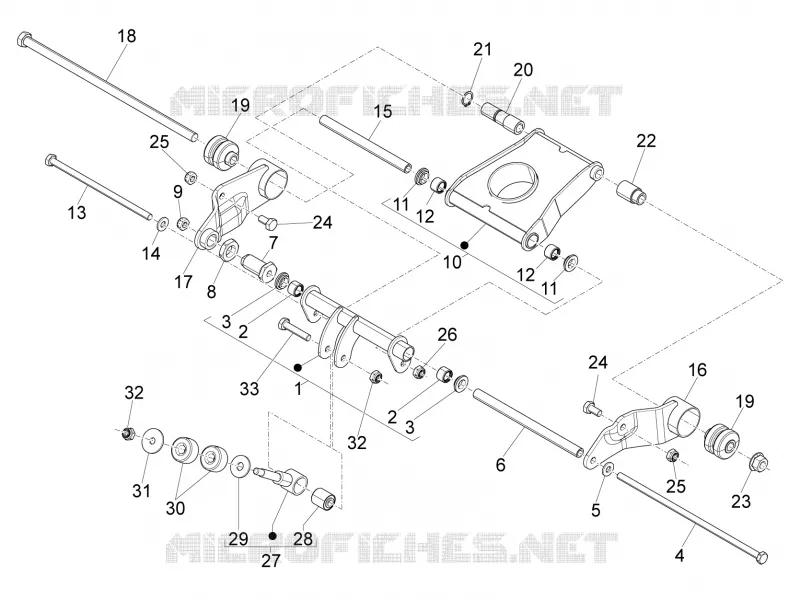

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
