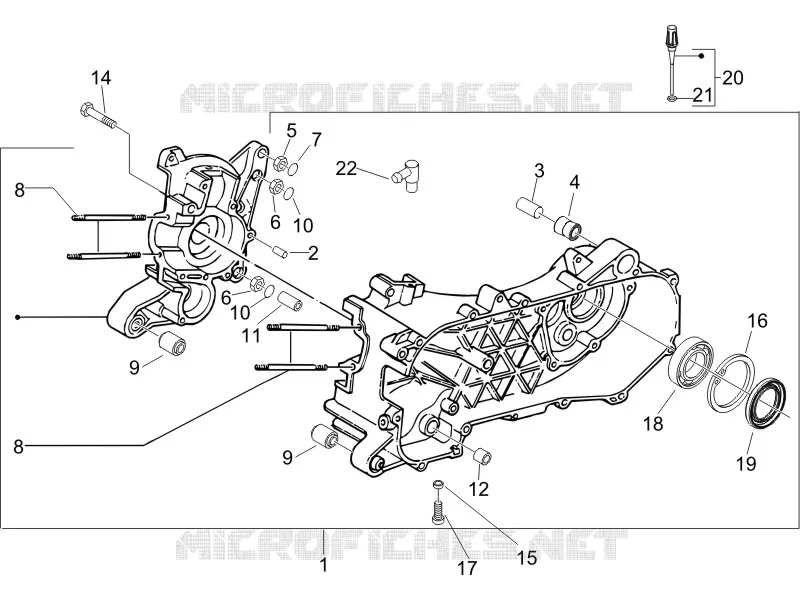

Crankcase
1
2
3
4
5
6
6
7
8
8
9
9
10
10
11
12
14
15
16
17
18
19
20
21
22
1
COMPLETE CRANKCASE
844056
Not Available
2
Pin 6,5x9,5x15
239388
Not Available
3
Spacer
266625
$3,70 Unit Price incl. VAT
4
Shock absorber connection silent block
267823
$4,92 Unit Price incl. VAT
5
Nut
020006
$0,34 Unit Price incl. VAT
6
Nut M8
020008
$0,08 Unit Price incl. VAT
7
Stop ring
829376
$0,19 Unit Price incl. VAT
8
Stud bolt
239382
Not Available
8
Stud bolt
877283
$3,65 Unit Price incl. VAT
9
Silent-block
486081
$6,73 Unit Price incl. VAT
10
Stop ring
829377
$0,19 Unit Price incl. VAT
11
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
12
Gasket ring
4352035
$5,09 Unit Price incl. VAT
14
screw
414835
$0,15 Unit Price incl. VAT
15
Gasket
000397
Not Available
16
Circlip
006647
$1,10 Unit Price incl. VAT
17
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
18
Bearing 20x47x14
434735
$7,12 Unit Price incl. VAT
19
Gasket ring
478498
$8,12 Unit Price incl. VAT
20
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
21
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT
22
Oil valve cpl.
82768R
$15,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
