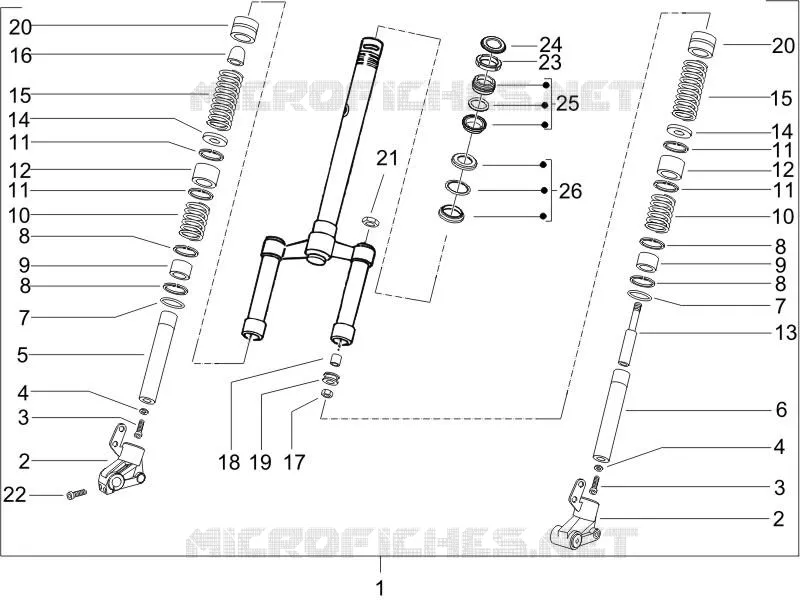

Fork/steering tube - Steering bearing unit
1
2
2
3
3
4
4
5
6
7
7
8
8
8
8
9
9
10
10
11
11
11
11
12
12
13
14
14
15
15
16
17
18
19
20
20
21
22
23
24
25
26
1
fork
95930R
$217,96 Unit Price incl. VAT
2
Couple shoe
959587
Not Available
2
Couple shoe
959589
$31,94 Unit Price incl. VAT
3
screw
494811
Not Available
4
Washer
494810
$0,05 Unit Price incl. VAT
5
RH hub
561916
$18,78 Unit Price incl. VAT
5
RH hub Wuxi top
599963
Not Available
6
LH hub Wuxi top
599962
$11,83 Unit Price incl. VAT
6
LH hub
561915
Not Available
7
Gasket ring Wuxi top
599969
$1,92 Unit Price incl. VAT
7
Gasket ring
564236
$16,17 Unit Price incl. VAT
7
Gasket ring
959578
Not Available
8
Ring
561919
$1,87 Unit Price incl. VAT
8
Circlip Wuxi top
599967
Not Available
9
Bushing Wuxi top
599964
$1,21 Unit Price incl. VAT
9
Bushing
561923
Not Available
10
Spring Wuxi top
599966
$0,56 Unit Price incl. VAT
10
Spring
561920
Not Available
11
Circlip
561922
$1,87 Unit Price incl. VAT
11
Circlip Wuxi top
599968
$0,55 Unit Price incl. VAT
12
Bushing
561927
Not Available
12
Bushing Wuxi top
599965
$1,05 Unit Price incl. VAT
13
Damper cartridge (Wuxi top)
599972
Not Available
13
Damper cartridge
561928
Not Available
14
Sleeve plug Wuxi top
648533
Not Available
14
Sleeve plug
561924
Not Available
15
Spring Wuxi top
599970
$4,11 Unit Price incl. VAT
15
Spring
561925
Not Available
16
Pad
561926
Not Available
16
Pad Wuxi top
599971
$0,72 Unit Price incl. VAT
17
Nut
494695
Not Available
17
Nut Wuxi top
648537
$1,44 Unit Price incl. VAT
18
Spacer
561921
Not Available
18
Spacer Wuxi top
599974
$0,27 Unit Price incl. VAT
19
Mounting drift
561929
Not Available
19
Mounting drift Wuxi top
599973
$0,27 Unit Price incl. VAT
20
Sleeve
561917
Not Available
20
Sleeve Wuxi top
648527
$6,35 Unit Price incl. VAT
21
Nut Wuxi top
648540
$1,44 Unit Price incl. VAT
21
Nut
494694
Not Available
22
screw
597150
$3,65 Unit Price incl. VAT
23
Steering tube ring nut
011109
Not Available
24
Washer of the steering
003751
$3,65 Unit Price incl. VAT
25
Upper thrust ring
56297R
Not Available
25
Upper thrust ring
CM061303
$65,02 Unit Price incl. VAT
25
Upper thrust ring
650693
Not Available
26
Lower steering bearing
CM061304
Not Available
26
Lower steering bearing
650075
Not Available
26
Lower steering bearing
56298R
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
