by

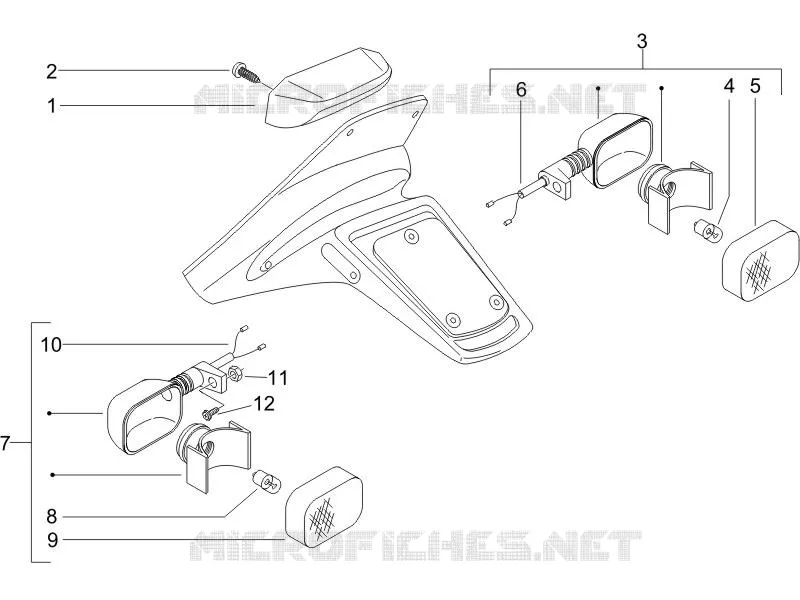

Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
10
11
12
1
Taillight
639402
Not Available
2
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
3
RH front/LH rear turn indic.
581804
$31,05 Unit Price incl. VAT
4
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
5
Glass
582244
Not Available
6
Cable harness
582248
$3,39 Unit Price incl. VAT
7
LH front/RH rear turn indic.
581803
$19,33 Unit Price incl. VAT
8
Lamp 12V-10W
181746
$3,28 Unit Price incl. VAT
9
Glass
582244
Not Available
10
Cable harness
582248
$3,39 Unit Price incl. VAT
11
Self locking nut M6
241936
$0,08 Unit Price incl. VAT
12
Screw M6x16
272836
$3,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
