Parts Catalog

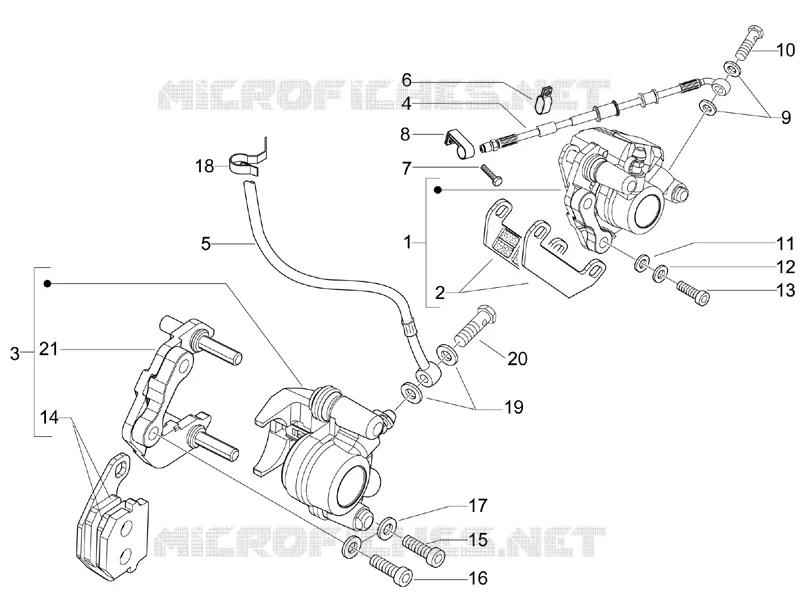

Brakes pipes - Calipers
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Meter combination - Cruscotto
Brakes pipes - Calipers
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Brake calliper assembly
CM076702
Not Available
2
Brake pads couple
647170
$60,75 Unit Price incl. VAT
3
Brake caliper Heng Tong
600734
$106,65 Unit Price incl. VAT
4
Rear brake tube
597752
$48,30 Unit Price incl. VAT
5
pipe
959371
Not Available
6
Hose clamp
216983
$2,95 Unit Price incl. VAT
7
screw M6x35
414838
$0,67 Unit Price incl. VAT
8
Hose clamp
564761
$0,38 Unit Price incl. VAT
9
Gasket
127927
$0,25 Unit Price incl. VAT
10
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
11
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
12
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
13
screw
598921
$0,56 Unit Price incl. VAT
14
Pads pair
647171
$40,50 Unit Price incl. VAT
15
screw M8x30
015792
$0,51 Unit Price incl. VAT
16
screw
598921
$0,56 Unit Price incl. VAT
17
Spring washer
709047
$0,08 Unit Price incl. VAT
18
Hose clamp
564629
$2,50 Unit Price incl. VAT
19
Gasket
127927
$0,25 Unit Price incl. VAT
20
Oil pipe screw M10x18
265451
$9,25 Unit Price incl. VAT
21
Caliper fixing bracket
600735
$20,70 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
