1
Engine displacement
50
2
Model
NRG
3
Year
2005
4
Trim
NRG Power DD
5
Parts Catalog
Reduction unit
6
Parts Diagram
Parts Catalog
Stater - Electric starter
by
Cooling system

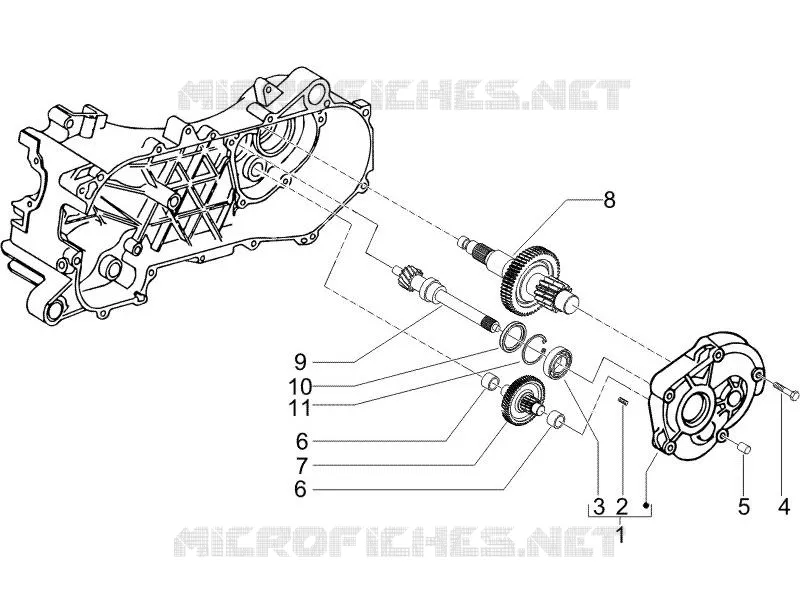

Reduction unit
1
2
3
4
5
6
6
7
8
9
10
11
1
Wheel hub cover with U.P.
4874805
$43,90 Unit Price incl. VAT
2
Pin 6,5x9,5x15
239388
Not Available
3
Bearing
435363
$6,44 Unit Price incl. VAT
4
Screw w/ flange M6x40
414834
$0,09 Unit Price incl. VAT
5
Compensator ring
478197
$8,31 Unit Price incl. VAT
6
Shim washer
288639
$2,99 Unit Price incl. VAT
7
Countershaft with U.P.
480218
Not Available
8
Rear wheel axle
4874855
$375,68 Unit Price incl. VAT
9
Driven pulley shaft
479593
Not Available
10
Gasket ring
480066
$5,99 Unit Price incl. VAT
11
Snap ring
480953
$3,70 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
