1
Engine displacement
50
2
Model
NRG
3
Year
2005
4
Trim
NRG Power DD
5
Parts Catalog

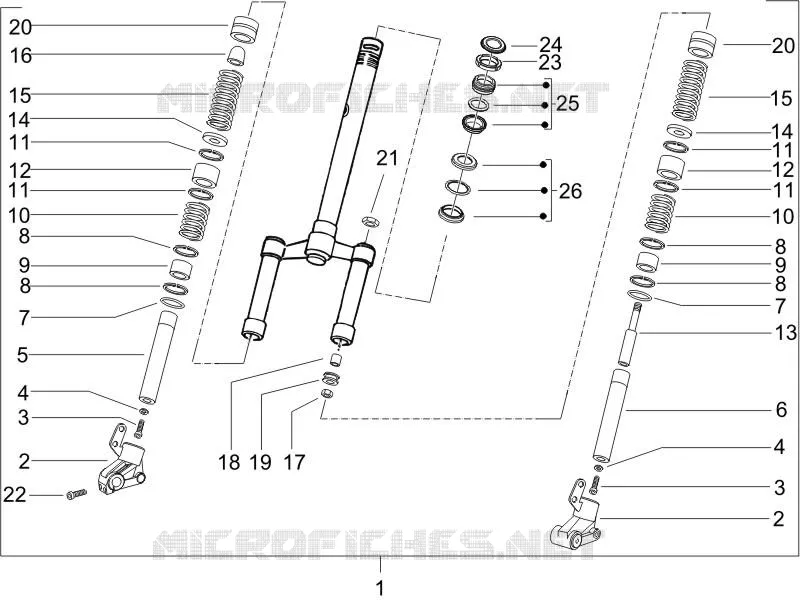

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Locks
by
Silencer
Fork/steering tube - Steering bearing unit
1
2
2
3
3
4
4
5
6
7
7
8
8
8
8
9
9
10
10
11
11
11
11
12
12
13
14
14
15
15
16
17
18
19
20
20
21
22
23
24
25
26
1
fork
95930R
$217,96 Unit Price incl. VAT
2
Couple shoe
959587
Not Available
2
Couple shoe
959589
$31,94 Unit Price incl. VAT
3
screw
494811
Not Available
4
Washer
494810
$0,05 Unit Price incl. VAT
5
RH hub
561916
$18,78 Unit Price incl. VAT
6
LH hub
561915
Not Available
7
Gasket ring
564236
$16,17 Unit Price incl. VAT
7
Gasket ring
959578
Not Available
8
Ring
561919
$1,87 Unit Price incl. VAT
9
Bushing
561923
Not Available
10
Spring
561920
Not Available
11
Circlip
561922
$1,87 Unit Price incl. VAT
12
Bushing
561927
Not Available
13
Damper cartridge
561928
Not Available
14
Sleeve plug
561924
Not Available
15
Spring
561925
Not Available
16
Pad
561926
Not Available
17
Nut
494695
Not Available
18
Spacer
561921
Not Available
19
Mounting drift
561929
Not Available
20
Sleeve
561917
Not Available
21
Nut
494694
Not Available
22
screw
597150
$3,65 Unit Price incl. VAT
23
Steering tube ring nut
011109
Not Available
24
Washer of the steering
003751
$3,65 Unit Price incl. VAT
25
Steering bearing assy.
56002R
Not Available
25
Upper thrust ring
56297R
Not Available
25
Upper thrust ring
CM061303
$65,02 Unit Price incl. VAT
26
Steering bearing assy.
56003R
Not Available
26
Lower steering bearing
CM061304
Not Available
26
Lower steering bearing
56298R
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
