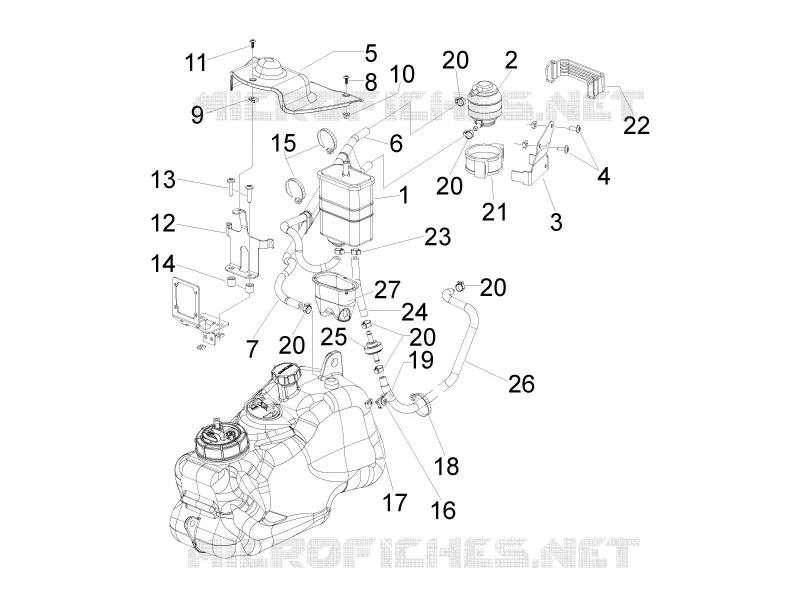

Anti-percolation system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
20
21
22
23
24
25
26
27
1
Canister completo di stiker
1B0045715
$67,50 Unit Price incl. VAT
2
Volet
CM028206
$39,15 Unit Price incl. VAT
3
Roll-over valve connection bracket
654938
$25,82 Unit Price incl. VAT
4
Screw M6x16
272836
$3,70 Unit Price incl. VAT
5
Canister cover
654732
$16,91 Unit Price incl. VAT
6
Sae j30 pipe R11-A O R12 1/4" L=920
CM177910
$43,65 Unit Price incl. VAT
7
pipe
CM177906
$23,22 Unit Price incl. VAT
8
Self-tap screw
576189
$0,05 Unit Price incl. VAT
9
Spring plate
CM017410
$0,34 Unit Price incl. VAT
10
Expansion plug
157716
$0,08 Unit Price incl. VAT
11
Self-tap screw
576189
$0,05 Unit Price incl. VAT
12
Canister bracket
654762
$17,07 Unit Price incl. VAT
13
Self tapping screw M6x35
259708
$3,70 Unit Price incl. VAT
14
Spacer
654771
$3,65 Unit Price incl. VAT
15
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
16
Screw M6x16
272836
$3,70 Unit Price incl. VAT
17
Spring plate M6
254485
$0,34 Unit Price incl. VAT
18
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
19
Hose clamp
573918
$1,09 Unit Price incl. VAT
20
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
21
Maintenance
576454
$2,30 Unit Price incl. VAT
22
Belt
583921
$9,50 Unit Price incl. VAT
23
Hose clamp
CM001914
$0,75 Unit Price incl. VAT
24
Sae j30 pipe R11-A O R12 1/4" L=920
CM177910
$43,65 Unit Price incl. VAT
25
Valve
622375
$37,35 Unit Price incl. VAT
26
Complete vacuum pipe
655250
$20,60 Unit Price incl. VAT
27
Tubes cover
654763
$12,30 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
