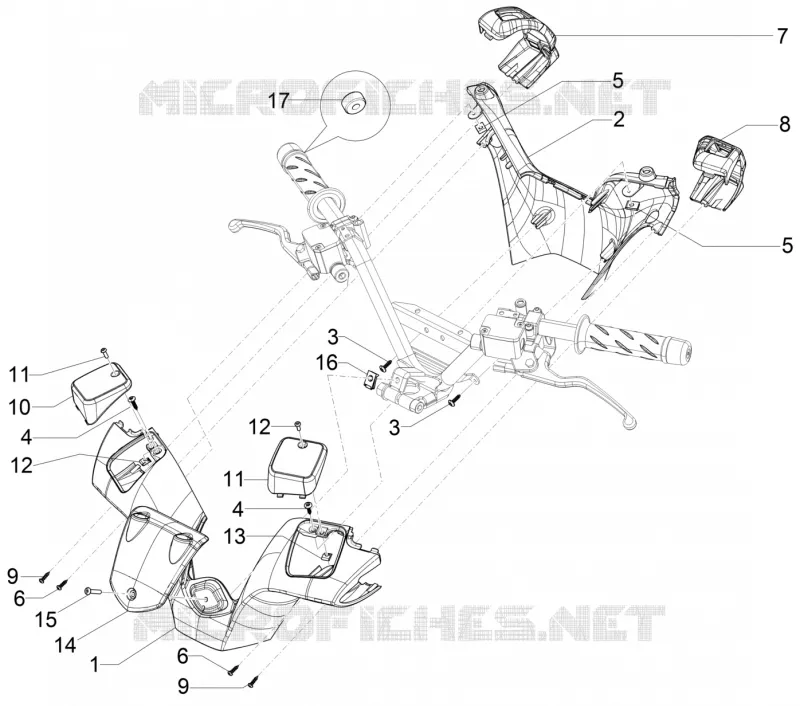

Handlebars coverages
1
1
2
3
3
4
4
5
5
6
6
7
8
9
9
10
11
11
11
12
13
14
15
16
17
1
Front handlebars cover
622957000C
$36,58 Unit Price incl. VAT
2
Rear handlebars cover
622958000C
$36,58 Unit Price incl. VAT
3
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
4
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
5
Spring plate
CM017409
$0,08 Unit Price incl. VAT
6
Self tapping screw M4x16
267115
$2,99 Unit Price incl. VAT
7
Right switch support
622994
Not Available
8
Left switch support
622993
$28,44 Unit Price incl. VAT
9
Self tapping screw M4x16
267115
$2,99 Unit Price incl. VAT
10
RH pump cover
623163000C
$7,69 Unit Price incl. VAT
11
LH pump cover
623265000C
$7,69 Unit Price incl. VAT
12
Hex socket screw
581957
$0,16 Unit Price incl. VAT
13
Plate
CM017418
$3,65 Unit Price incl. VAT
14
Handlebar central cover
656037
$47,20 Unit Price incl. VAT
15
Screw m5x25
581175
$0,17 Unit Price incl. VAT
16
Spring plate M5
248419
$0,67 Unit Price incl. VAT
17
Spacer
573673
$6,60 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
