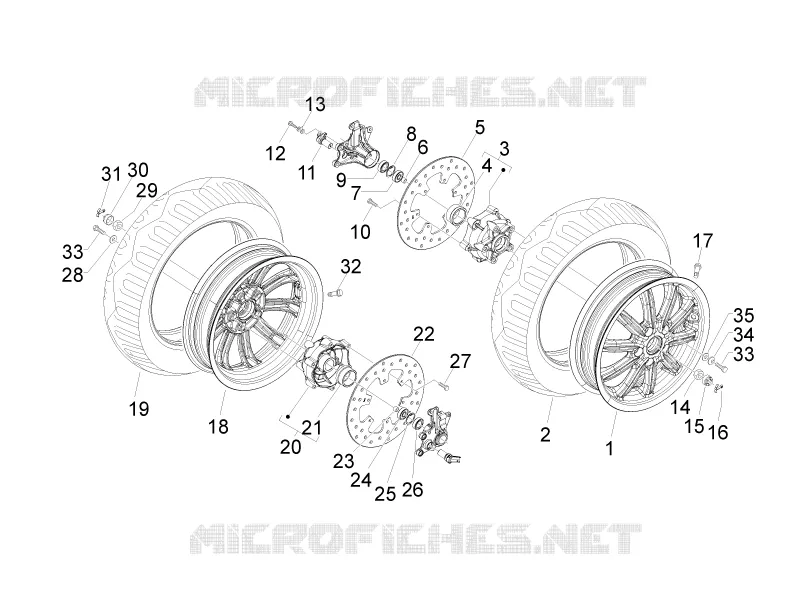

Front wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
1
FRONT WHEEL
650692
$113,40 Unit Price incl. VAT
2
(Michelin) Front tyre 120/70-12"
666329
Not Available
2
(Dunlop) Front tyre 120/70-12"
650771
Not Available
2
120/70-12"
649149
Not Available
3
Rear wheel hub with U.P.
650907
$46,15 Unit Price incl. VAT
4
Bushing
650906
Not Available
5
Front brake disk
649226
Not Available
6
Roller cage
177442
$4,04 Unit Price incl. VAT
7
Bearing
177610
$8,41 Unit Price incl. VAT
8
Snap ring
006635
$0,25 Unit Price incl. VAT
9
Gasket ring
177443
$1,77 Unit Price incl. VAT
10
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
11
Wheel speed sensor
639366
$76,85 Unit Price incl. VAT
12
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
13
Spacer for timing sensor
646760
$3,65 Unit Price incl. VAT
14
Nut
021114
$0,51 Unit Price incl. VAT
15
Cap
177609
$2,19 Unit Price incl. VAT
16
Split pin
012787
$0,16 Unit Price incl. VAT
17
Tubeless valve
597679
$3,03 Unit Price incl. VAT
18
FRONT WHEEL
650692
$113,40 Unit Price incl. VAT
19
(Michelin) Front tyre 120/70-12"
666329
Not Available
19
(Dunlop) Front tyre 120/70-12"
650771
Not Available
19
120/70-12"
649149
Not Available
20
Rear wheel hub with U.P.
650907
$46,15 Unit Price incl. VAT
21
Bushing
650906
Not Available
22
Front brake disk
649226
Not Available
23
Roller cage
177442
$4,04 Unit Price incl. VAT
24
Bearing
177610
$8,41 Unit Price incl. VAT
25
Snap ring
006635
$0,25 Unit Price incl. VAT
26
Gasket ring
177443
$1,77 Unit Price incl. VAT
27
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
28
Spring washer
709047
$0,08 Unit Price incl. VAT
29
Nut
021114
$0,51 Unit Price incl. VAT
30
Cap
177609
$2,19 Unit Price incl. VAT
31
Split pin
012787
$0,16 Unit Price incl. VAT
32
Tubeless valve
597679
$3,03 Unit Price incl. VAT
33
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
34
Spring washer
709047
$0,08 Unit Price incl. VAT
35
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
