by

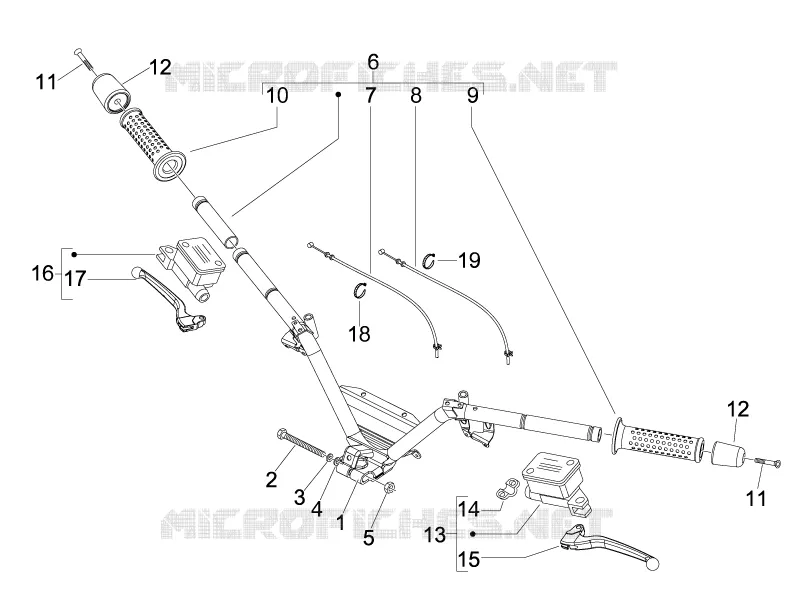

Handlebars - Master cil.
19
18
17
16
15
14
13
12
12
11
11
10
9
8
7
6
5
4
3
2
1
1
Handlebar with U.P.
6570735
$75,13 Unit Price incl. VAT
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat washer
178790
$0,51 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Throttle control sleeve assembly
CM079732
$95,11 Unit Price incl. VAT
7
Throttle opening transmission
649922
$57,82 Unit Price incl. VAT
8
Throttle closing transmission
649923
Not Available
9
Grip, l.h.
CM084201
$7,02 Unit Price incl. VAT
10
Grip, r.h.
CM084202
$7,02 Unit Price incl. VAT
11
screw
576836
$3,03 Unit Price incl. VAT
12
Handlebar terminal
654603
$24,90 Unit Price incl. VAT
13
Left brake hydraulic pump Heng Tong
CM081205
$136,35 Unit Price incl. VAT
14
Bracket
600476
$11,06 Unit Price incl. VAT
15
Brake lever Heng Tong
600475
$11,82 Unit Price incl. VAT
16
Right brake hydraulic pump (Brembo)
CM086004
Not Available
17
Brake lever (Brembo)
646829
$27,00 Unit Price incl. VAT
18
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
19
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
