by

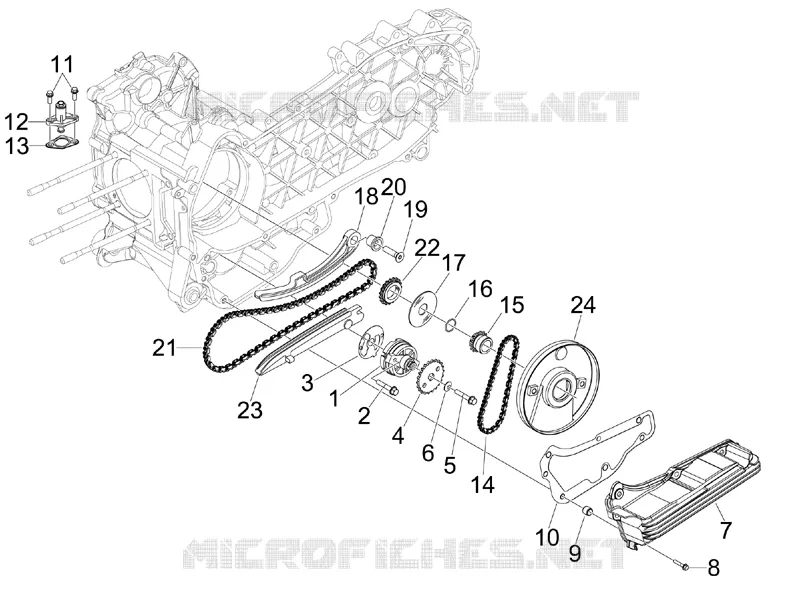

Oil pump
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Oil pump assembly
82948R
$14,37 Unit Price incl. VAT
2
Screw w/ flange M5x35
829593
$0,50 Unit Price incl. VAT
3
Carter-oil pump gasket
847929
$0,34 Unit Price incl. VAT
4
Oil pump gear
287913
$6,47 Unit Price incl. VAT
5
Screw w/ flange M6x14
833722
Not Available
5
Screw w/ flange M6x14
B016426
$0,42 Unit Price incl. VAT
6
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
7
Pan oil
875908
Not Available
8
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
8
Screw w/ flange M6x30
289731
Not Available
9
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
10
Gasket
846098
$3,28 Unit Price incl. VAT
11
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
12
Complete chain tensioner
82650R
$34,52 Unit Price incl. VAT
13
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT
14
Oil pump chain
82649R
$13,37 Unit Price incl. VAT
15
Oil pump control pinion
82783R
$7,99 Unit Price incl. VAT
16
O-Ring seal ring
825952
$0,15 Unit Price incl. VAT
17
Oil seal washer
483918
$0,53 Unit Price incl. VAT
18
Chain tensioner rod
840344
$4,20 Unit Price incl. VAT
19
Screw w/ flange M6x25
414837
Not Available
20
Chain tensioner rod spacer
485868
$0,29 Unit Price incl. VAT
21
Camshaft chain
82723R
$24,71 Unit Price incl. VAT
22
Timing chain pinion
82782R
$7,06 Unit Price incl. VAT
23
Chain tensioner sliding block
847516
$4,25 Unit Price incl. VAT
24
Timing system cover
847116
$22,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
