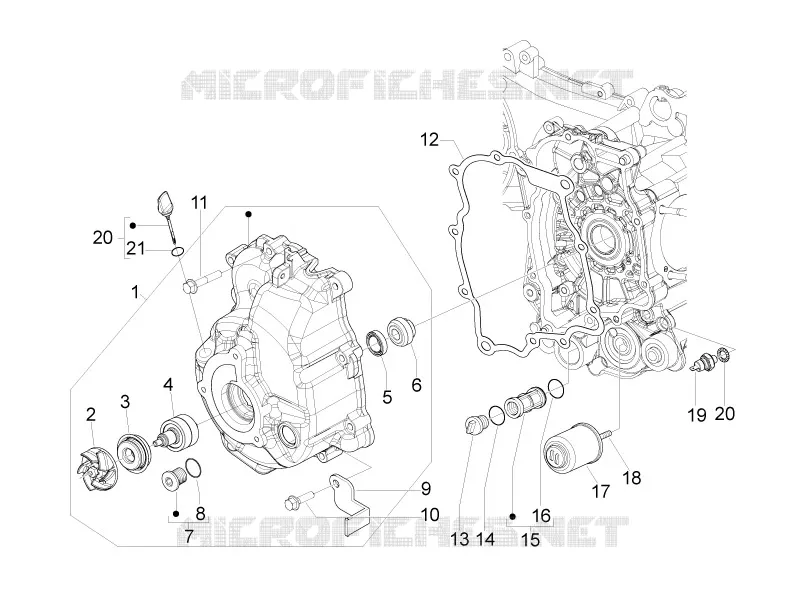

Flywheel magneto cover - Oil filter
20
12
9
5
3
21
20
19
18
17
16
15
14
13
11
10
8
7
6
4
2
1
1
Complete flywheel cover
B0148885
$153,80 Unit Price incl. VAT
2
Water pump impeller cpl.
844730
$3,01 Unit Price incl. VAT
3
Gasket ring
82991R
$24,39 Unit Price incl. VAT
4
Water pump shaft assy.
8447595
$54,95 Unit Price incl. VAT
5
Gasket ring 20x30x5
82897R
$4,36 Unit Price incl. VAT
6
Pump impeller drive key
842389
$5,64 Unit Price incl. VAT
7
Timing plug assembly
8290405
$10,28 Unit Price incl. VAT
8
O-ring
479986
Not Available
9
Lambda probe plate
641551
$3,40 Unit Price incl. VAT
10
screw M6x112,5
B016807
$1,26 Unit Price incl. VAT
11
screw M6x35
414838
$0,67 Unit Price incl. VAT
12
Flywheel housing cover gasket
840504
$2,91 Unit Price incl. VAT
13
Oil filter plug
826165
$5,88 Unit Price incl. VAT
14
O-ring 31,47x1,78
285536
$0,92 Unit Price incl. VAT
15
Intake oil filter
843568
$14,92 Unit Price incl. VAT
16
O-ring 20,35x1,78
288474
$0,08 Unit Price incl. VAT
17
Oil filter
82635R
$12,36 Unit Price incl. VAT
18
Oil filter special screw
840507
$10,25 Unit Price incl. VAT
19
Oil pressure sensor
641541
Not Available
20
Oil dipstick
879081
$5,38 Unit Price incl. VAT
21
O-ring
479986
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
