1
Engine displacement
300
2
Model
MP3
3
Year
2010
4
Trim
MP3 4T 4V ie ERL Ibrido
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Main cable harness
by
Selectors - Switches - Buttons
Fork/steering tube - Steering bearing unit
1
2
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
30
31
31
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
1
GR. TUBO COM. STERZO C.P.I.
58568R
$192,74 Unit Price incl. VAT
2
ASSE COM.TUBO STERZO
622751
$35,81 Unit Price incl. VAT
5
DADO FLANG.AUTOBL. M8x1.25
967363
$0,51 Unit Price incl. VAT
6
RONDELLA 8,4x20x1,5
006032
$0,56 Unit Price incl. VAT
7
ROSETTA PIANA SEMILAVORATA
003038
$0,25 Unit Price incl. VAT
8
TIRANTE COMANDO STERZO COMPL.
622744
$70,77 Unit Price incl. VAT
9
RING
167018
$6,35 Unit Price incl. VAT
10
D.C.BEARING
167016
$5,67 Unit Price incl. VAT
11
GIUNTO CARDANICO COMPLETO
666901
$107,96 Unit Price incl. VAT
12
RONDELLA PIANA D20 F8,2
013861
$0,25 Unit Price incl. VAT
13
RONDELLA
647494
$3,65 Unit Price incl. VAT
14
DADO FLANG.AUTOBL. M8x1.25
967363
$0,51 Unit Price incl. VAT
15
GR.RALLE P.R.
6019175
$118,80 Unit Price incl. VAT
16
Missing description
000000
Not Available
17
GHIERA TUBO STERZO
0111094
$2,60 Unit Price incl. VAT
18
RONDELLA DELLO STERZO
0037514
$1,51 Unit Price incl. VAT
19
PACKING
224202
$0,66 Unit Price incl. VAT
20
BRACCIO SOSPENSIONE ANTERIORE COMPLETO
646556
$178,60 Unit Price incl. VAT
21
ANELLO ELASTICO
006635
$0,25 Unit Price incl. VAT
22
CUSCINETTO A SFERE
601345
$12,69 Unit Price incl. VAT
23
ANELLO ELASTICO 47x50,5x1,75
006647
$1,10 Unit Price incl. VAT
24
CUSCINETTO A SFERE
601467
$18,36 Unit Price incl. VAT
25
BRACCIO SOSENSIONE ANTERIORE COMPLETO
646561
$166,91 Unit Price incl. VAT
26
ANELLO ELASTICO
006635
$0,25 Unit Price incl. VAT
27
CUSCINETTO A SFERE
601345
$12,69 Unit Price incl. VAT
28
ANELLO ELASTICO 47x50,5x1,75
006647
$1,10 Unit Price incl. VAT
29
CUSCINETTO A SFERE
601467
$18,36 Unit Price incl. VAT
30
VITE TESTA CILINDRICA ESAGONO INCASSATO
649392
$3,65 Unit Price incl. VAT
31
ROSETTA ELASTICA CON DENTATURA
012535
$0,08 Unit Price incl. VAT
32
BOCCOLA
621288
$6,30 Unit Price incl. VAT
33
RONDELLA PIANA
178790
$0,51 Unit Price incl. VAT
34
VITE TE.PARZ.FIL. M10x120
030113
$3,65 Unit Price incl. VAT
35
DADO FLANG.AUTOFR.TRIB M10 6H CH.15
564878
$2,99 Unit Price incl. VAT
36
VITE
975855
$3,65 Unit Price incl. VAT
37
RONDELLA ELAST.ONDULATA (D15 F8,6)
709047
$0,08 Unit Price incl. VAT
38
Suspension arm connection bracket
646543
$35,51 Unit Price incl. VAT
39
Lateral headstock with U.P.
647214
Not Available
40
Steering bearing assy. R.H.
6471835
Not Available
41
GHIERA TUBO STERZO
0111094
$2,60 Unit Price incl. VAT
42
Upper thrust ring
600750
Not Available
43
Steering bearing assy. L.H.
6007705
$139,05 Unit Price incl. VAT
44
GHIERA TUBO STERZO
0111094
$2,60 Unit Price incl. VAT
45
Upper thrust ring
600750
Not Available
46
VITE TCCIC M5X22 (5.8)
828662
$0,25 Unit Price incl. VAT
47
COPERCHIETTO GIUNTO CARDANICO
647202
$13,84 Unit Price incl. VAT
48
PATTINO TUBAZIONE FRENO
624854
$1,97 Unit Price incl. VAT
49
VITE TESTA ESAGON.FLANG. M6X10
969296
$0,16 Unit Price incl. VAT
50
RONDELLA DI PROTEZIONE
600356
$0,94 Unit Price incl. VAT
51
RONDELLA DI PROTEZIONE
600356
$0,94 Unit Price incl. VAT

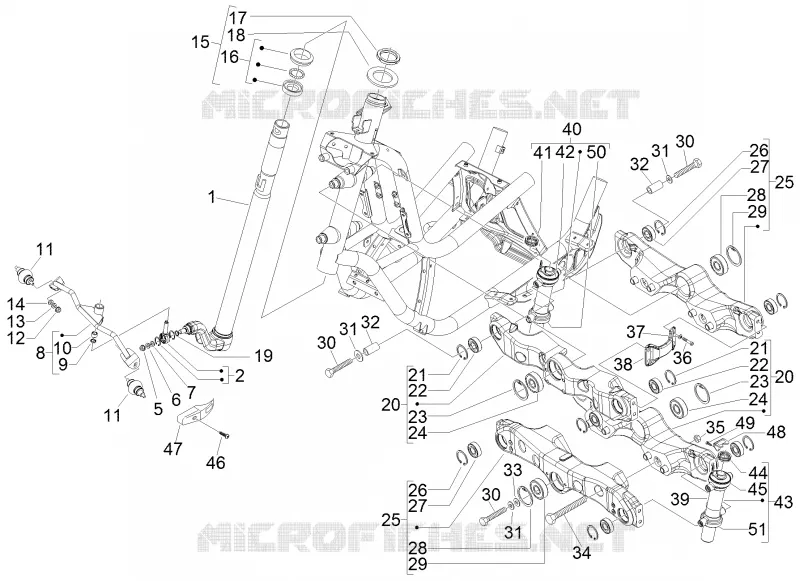

Find the detailed Fork/steering tube - Steering bearing unit GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
