Selectors - Switches - Buttons for GILERA PIAGGIO VESPA MP3 4T 4V ie ERL Ibrido from 2010

Fork/steering tube - Steering bearing unit

Handlebars - Master cil.

Selectors - Switches - Buttons

1

Light switch with flash

642967

Not Available

1

Headlight selector

641825

Not Available

2

Turn signal lamps switch

641447

Not Available

3

Horn button

641358

Not Available

4

Emergency turn indicator button

641836

Not Available

4

PULSANTE PER LAMP. DI EMERGENZA

642079

$2,11 Unit Price incl. VAT

5

DEVIATORE ARRESTO MOTO

641824

$14,18 Unit Price incl. VAT

6

PULS.BLOCCO/SLOCCO ROLLIO

641347

$14,18 Unit Price incl. VAT

6

PULSANTE BLOCCO/SBLOCCO ROLLIO

641448

$18,86 Unit Price incl. VAT

7

Start pushbutton

641359

Not Available

8

PULSANTE "TRIP"

641837

$1,67 Unit Price incl. VAT

9

Keys and switch kit

656191

Not Available

10

SBOZZATO CHIAVE CON TRANSPONDER

656264

$68,04 Unit Price incl. VAT

11

VITE TCEI M6X20

709674

$0,17 Unit Price incl. VAT

12

COPERCHIO SERRATURA COMPLETO

652624

$18,14 Unit Price incl. VAT

13

PULSANTE STOP

642032

$22,15 Unit Price incl. VAT

14

PULSANTE PORTIERA

255323

$7,94 Unit Price incl. VAT

15

VITE

018536

$0,08 Unit Price incl. VAT

16

PULSANTE APERTURA ELET

582988

$6,35 Unit Price incl. VAT

17

PULSANTE APERTURA BAULIERA

641742

$4,82 Unit Price incl. VAT

18

PULSANTE BUZZER

582229

$6,40 Unit Price incl. VAT

19

PULSANTE (HY TECH)

641851

$1,67 Unit Price incl. VAT

20

SUPPORTO PULSANTI

656293

$13,36 Unit Price incl. VAT

21

VITE AUTOF.CON TAGLIO A CROCE 3,5x13

297498

$0,08 Unit Price incl. VAT

22

RONDELLA PIANA METALLICA (12x4,2x1)

013763

$0,08 Unit Price incl. VAT

23

SPIA RICARICA DA RETE

641695

$14,40 Unit Price incl. VAT

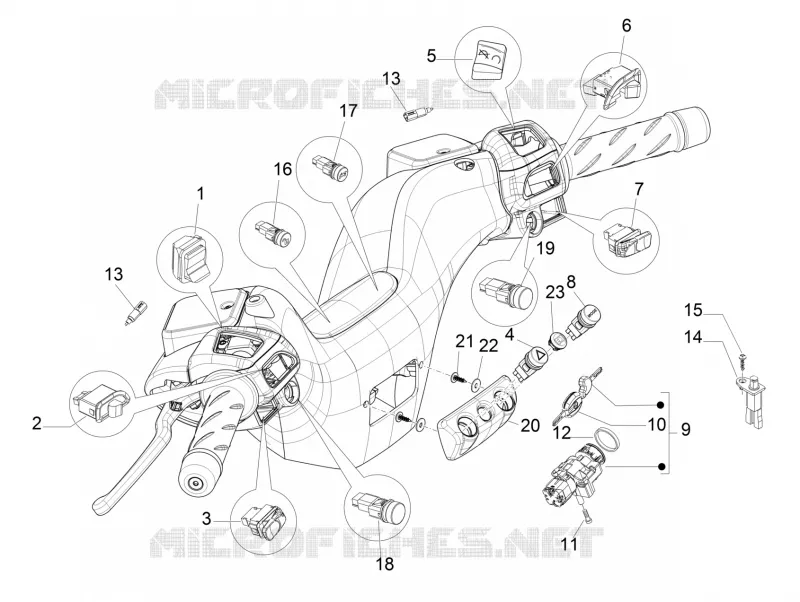

Find the detailed Selectors - Switches - Buttons GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
