Main cable harness for GILERA PIAGGIO VESPA MP3 4T 4V ie ERL Ibrido from 2010

Side cover - Spoiler

Fork/steering tube - Steering bearing unit

Main cable harness

1

GRUPPO CAVETTI

641240

$632,27 Unit Price incl. VAT

2

FUSIBILE 20 A.

580561

$0,42 Unit Price incl. VAT

2

FUSIBILE 7,5 A

252945

$0,42 Unit Price incl. VAT

2

FUSIBILE LAMELLARE 15A

290860

$5,73 Unit Price incl. VAT

3

MOLLA PER CONNETTORE

584520

$5,38 Unit Price incl. VAT

4

STAFFA

639843

$6,30 Unit Price incl. VAT

5

VITE A TESTA ESAGONALE FLANGIATA

484123

$0,16 Unit Price incl. VAT

6

RONDELLA ELASTICA BOMBATA

012528

$0,34 Unit Price incl. VAT

7

GRUPPO CAVETTI SENSORE VEL. DESTRO

642549

$35,36 Unit Price incl. VAT

8

Screw w/ flange M6x16

434541

$0,09 Unit Price incl. VAT

9

FASCETTA

573918

$1,09 Unit Price incl. VAT

10

GRUPPO CAVETTI SENSORE VEL. SINISTRO

642550

$35,36 Unit Price incl. VAT

11

VITE AUTOFIL. TBCIC 3,8x16

270793

$0,08 Unit Price incl. VAT

12

RONDELLA PIANA 16x4,2x1

013963

$0,19 Unit Price incl. VAT

13

FASCETTA METALLICA

271477

$3,65 Unit Price incl. VAT

14

Hose clamp

D9004461193

$5,38 Unit Price incl. VAT

15

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

16

MOLLETTA RITEGNO TUBI/CAVI

CM006907

$1,51 Unit Price incl. VAT

17

MOLLETTA RITEGNO TUBI

CM013201

$0,40 Unit Price incl. VAT

18

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

19

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

20

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

21

VITE TBC M5X10

430264

$2,99 Unit Price incl. VAT

23

MOLLETTA ELASTICA

231590

$0,25 Unit Price incl. VAT

24

STAFFA

641192

$2,85 Unit Price incl. VAT

25

VITE A TESTA ESAGONALE FLANGIATA

484123

$0,16 Unit Price incl. VAT

26

Ground cable

581424

Not Available

27

VITE AUTOMASC.TESTA ESAG.TRILOBATA

641204

$0,34 Unit Price incl. VAT

28

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

29

RONDELLA PIANA 6,4x12x1

003056

$0,08 Unit Price incl. VAT

30

RONDELLA PIANA D15 F5,2 S1,5

224664

$1,26 Unit Price incl. VAT

31

VITE A TESTA ESAGONALE FLANGIATA

484123

$0,16 Unit Price incl. VAT

32

MOLLA PER CONNETTORE

584520

$5,38 Unit Price incl. VAT

33

MORSETTIERA P/FUSIB.6 VIE

584211

$26,74 Unit Price incl. VAT

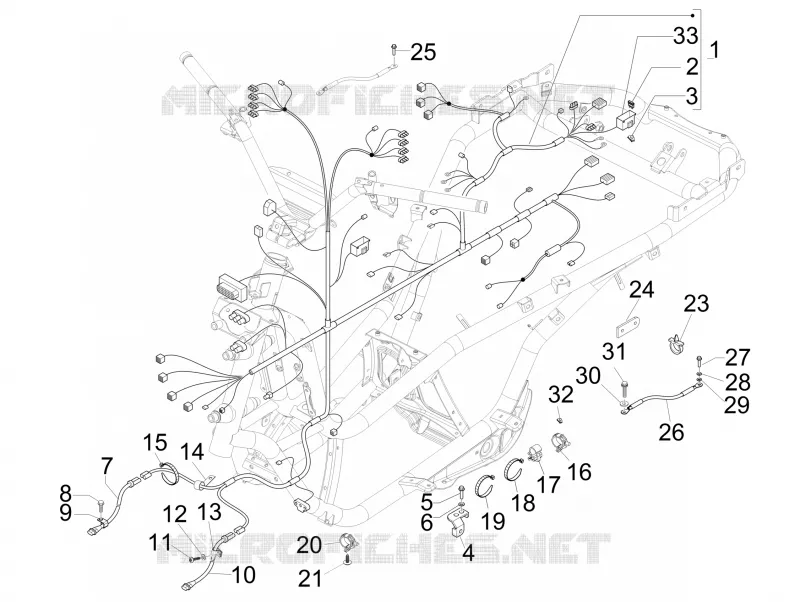

Find the detailed Main cable harness GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
