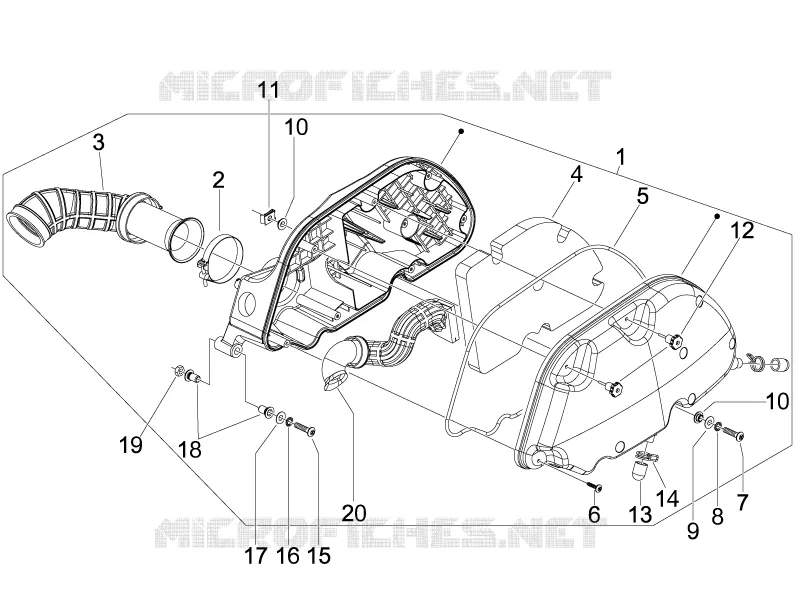

Air filter
20
19
18
17
16
15
14
13
12
10
10
9
8
7
6
5
11
4
3
2
1
1
Complete air cleaner box
878926
$67,02 Unit Price incl. VAT
2
Hose clamp
878927
$3,89 Unit Price incl. VAT
3
Air cleaner sleeve
874990
$8,16 Unit Price incl. VAT
4
Air filter
831997
Not Available
5
Gasket
844428
$6,30 Unit Price incl. VAT
6
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
7
Special cap screw M6x50
018640
$0,16 Unit Price incl. VAT
8
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
9
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
10
Knurled bushing
830056
$0,34 Unit Price incl. VAT
11
Spring plate M6
254485
$0,34 Unit Price incl. VAT
12
Air filter closing knob
479132
$10,92 Unit Price incl. VAT
13
Cap
827831
$2,60 Unit Price incl. VAT
14
Hose clamp
CM002920
Not Available
15
screw
259166
Not Available
16
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
17
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
18
Bushing
830057
$1,01 Unit Price incl. VAT
19
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
20
Hose
844921
$24,90 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
