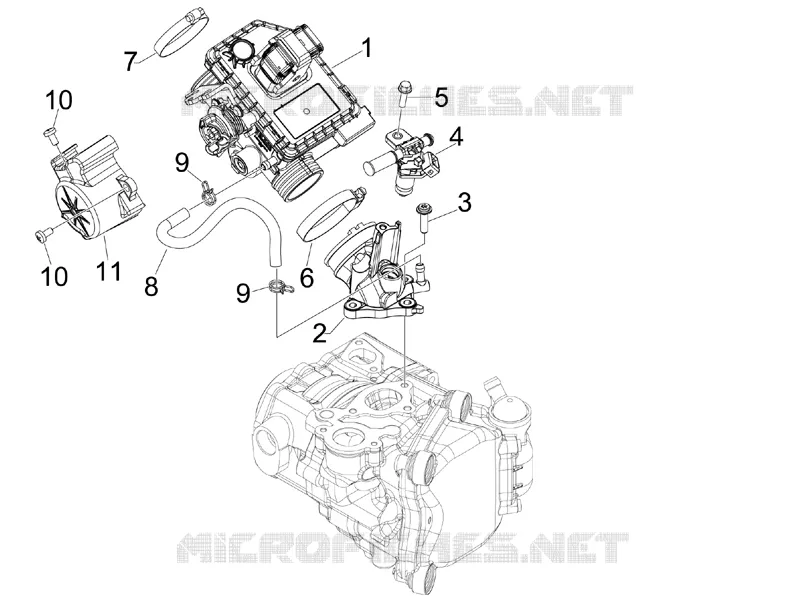

Throttle body - Injector - Union pipe
1
2
3
4
5
6
7
8
9
9
10
10
11
1
Throttle body with E.U.C.
CM082501
$1 059,22 Unit Price incl. VAT
2
Induction joint with U.P.
875304
Not Available
2
Induction joint with U.P.
B013348
$107,07 Unit Price incl. VAT
3
screw M6x22
828152
$0,15 Unit Price incl. VAT
4
Injector complete with connection
8738675
Not Available
5
Screw w/ flange M5x20
872269
$3,70 Unit Price incl. VAT
6
Hose clamp
709532
Not Available
7
Hose clamp
614188
$2,61 Unit Price incl. VAT
8
Pipe
CM001307
Not Available
9
Hose clamp
CM002905
$0,42 Unit Price incl. VAT
10
Screw M5x10
018575
$2,95 Unit Price incl. VAT
11
Pulley protection cover
876683
$4,11 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
