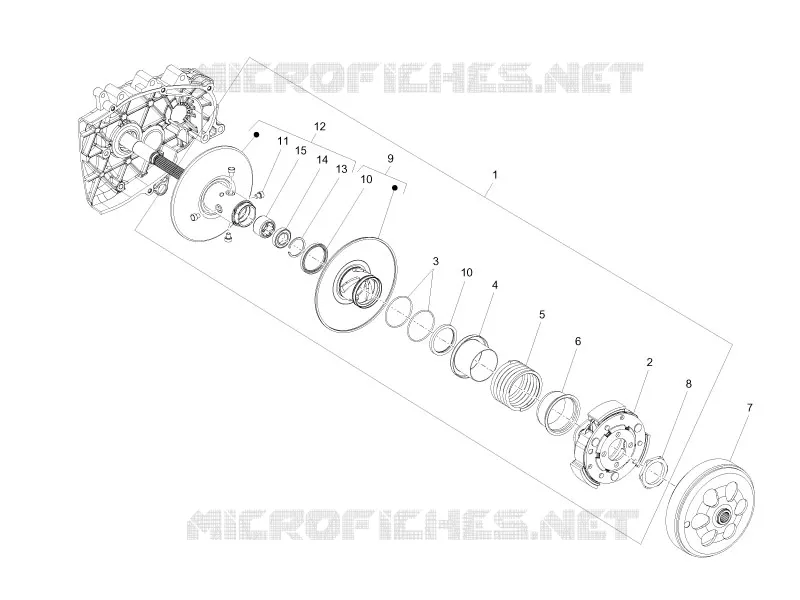

Driven pulley
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
1
Clutch driven pulley assy.
CM162401
$232,20 Unit Price incl. VAT
2
Centrifugal clutch assembly
CM161202
$155,25 Unit Price incl. VAT
3
Gasket
430585
$4,89 Unit Price incl. VAT
4
Pulley side cap
4310935
$9,79 Unit Price incl. VAT
5
Variator spring
872877
$12,02 Unit Price incl. VAT
6
Clutch side cap
487936
$5,73 Unit Price incl. VAT
7
Complete clutch drum
875973
$14,39 Unit Price incl. VAT
8
Ring nut
433232
$2,31 Unit Price incl. VAT
9
Adjustable pulley, half
879002
$63,56 Unit Price incl. VAT
10
Gasket ring
431089
$2,55 Unit Price incl. VAT
11
Guide pin L=12,5
828717
$0,34 Unit Price incl. VAT
12
Fixed driven half pulley
830580
$69,28 Unit Price incl. VAT
13
Snap ring
483226
$0,72 Unit Price incl. VAT
14
Bearing 17x30x7
82753R
$19,17 Unit Price incl. VAT
15
Roller cage 20x29x18
82518R
$12,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
