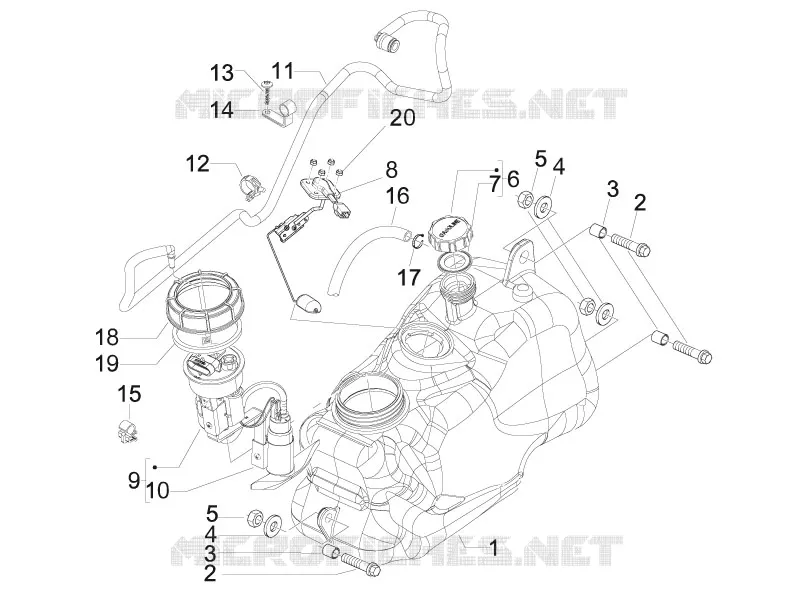

Fuel tank
1
2
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Fuel tank
655704
Not Available
2
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
3
Spacer
231027
$1,22 Unit Price incl. VAT
4
Flat washer 6,5x21
268304
$0,42 Unit Price incl. VAT
5
Self locking nut
012138
$0,17 Unit Price incl. VAT
6
Plug
259832
$1,10 Unit Price incl. VAT
7
Tank cover gasket
258160
$1,00 Unit Price incl. VAT
8
Indicator fuel level
641311
$64,66 Unit Price incl. VAT
9
Complete fuel pump assembly
640518
$281,27 Unit Price incl. VAT
10
Fuel pump filter
639357
$78,73 Unit Price incl. VAT
11
Delivery fuel pipe
655255
$38,66 Unit Price incl. VAT
12
Molletta
CM006910
$0,25 Unit Price incl. VAT
13
Self-tapping screw
430264
$2,99 Unit Price incl. VAT
14
Hose clamp
623743
Not Available
15
Sheet edge spring
CM013203
$0,67 Unit Price incl. VAT
16
pipe
CM001209
Not Available
16
Tank breather pipe
CM011904
$20,60 Unit Price incl. VAT
17
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
18
Ring nut
576546
$4,71 Unit Price incl. VAT
19
Gasket
576542
Not Available
20
Nut
709116
$0,59 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
