1
Engine displacement
150
2
Model
MEDLEY
3
Year
2017
4
Trim
Medley 4T ie ABS
5
Parts Catalog

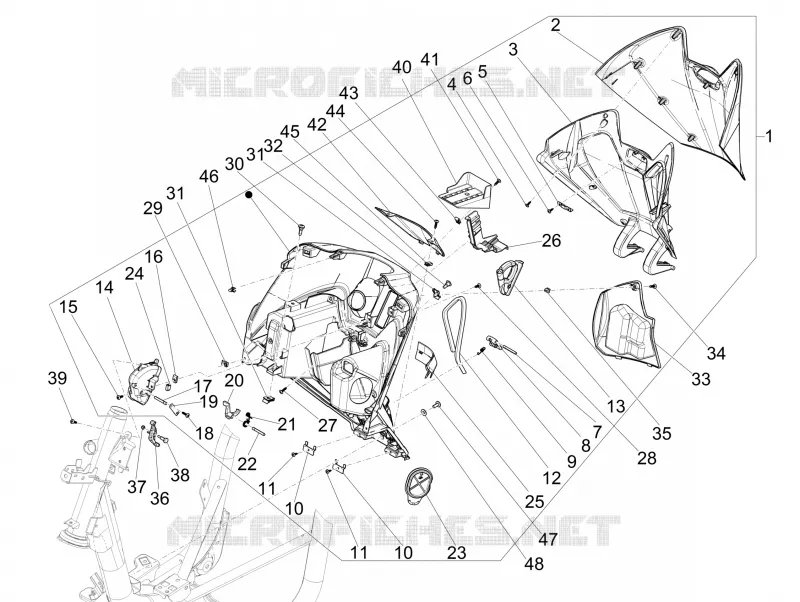

Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Handlebars coverages
by
Stand/s
Front glove-box - Knee-guard panel
1
1
2
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
31
32
33
33
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
1
Coffre complet
1B006822500MH
$105,46 Unit Price incl. VAT
1
Coffre complet
1B0068225000C
$93,79 Unit Price incl. VAT
2
Capot coffre
1B0016810000C
$6,29 Unit Price incl. VAT
2
Porte de coffre peinte
1B001681000MH
$8,65 Unit Price incl. VAT
3
Contre-porte
1B001709
$20,42 Unit Price incl. VAT
4
Self tapping screw
297498
$0,08 Unit Price incl. VAT
5
Square
252420
$0,59 Unit Price incl. VAT
6
Self tapping screw
297498
$0,08 Unit Price incl. VAT
7
Pin
577400
$5,38 Unit Price incl. VAT
8
Lever
577861
$1,35 Unit Price incl. VAT
9
Spring
577399
$2,61 Unit Price incl. VAT
10
Door fixing bracket
257614
$1,09 Unit Price incl. VAT
11
Self tapping screw
297498
$0,08 Unit Price incl. VAT
12
Top box weatherseal
CM006315
$1,35 Unit Price incl. VAT
13
Crochet porte-sac
1B006813
$10,76 Unit Price incl. VAT
14
Support crochet porte-sac
1B001868
$1,70 Unit Price incl. VAT
15
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
16
Spring plate
CM017410
$0,34 Unit Price incl. VAT
17
Pin
575021
$4,04 Unit Price incl. VAT
18
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
19
Spring
464620
$4,82 Unit Price incl. VAT
20
Pawl
575607
$1,35 Unit Price incl. VAT
21
Spring
1B003658
$0,76 Unit Price incl. VAT
22
Pin
575021
$4,04 Unit Price incl. VAT
23
Bouchon
1B002864
$1,65 Unit Price incl. VAT
24
Catch spring
299693
$0,42 Unit Price incl. VAT
25
Encadrement
1B0020730000C
$0,98 Unit Price incl. VAT
25
Encadrement
1B002073000MH
$1,15 Unit Price incl. VAT
26
Support p-fusibles
1B003433
$0,98 Unit Price incl. VAT
27
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
28
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
29
Spring plate
CM017410
$0,34 Unit Price incl. VAT
30
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
31
Spring plate M6
254485
$0,34 Unit Price incl. VAT
32
screw
CM179202
$0,25 Unit Price incl. VAT
33
Abattant batteria
1B001717000MH
$3,61 Unit Price incl. VAT
33
Abattant batteria
1B0050570000C
$9,47 Unit Price incl. VAT
33
Abattant batteria
1B0017170000C
Not Available
34
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
35
Expansion plug
157716
$0,08 Unit Price incl. VAT
36
Doigt de la serrure
1B002031
$0,93 Unit Price incl. VAT
37
Self locking nut
577620
$0,08 Unit Price incl. VAT
38
Special screw
299972
$0,50 Unit Price incl. VAT
39
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
40
Support batterie
1B001859
$2,08 Unit Price incl. VAT
41
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
42
Fermeture centrale
1B001685000MH
$2,08 Unit Price incl. VAT
42
Fermeture centrale
1B0016850000C
$1,70 Unit Price incl. VAT
43
Spring plate
CM017410
$0,34 Unit Price incl. VAT
44
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
45
Spring plate
CM017410
$0,34 Unit Price incl. VAT
46
Gripper clip
D9004468091
$0,34 Unit Price incl. VAT
47
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
48
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
