1
Engine displacement
150
2
Model
MEDLEY
3
Year
2017
4
Trim
Medley 4T ie ABS
5
Parts Catalog

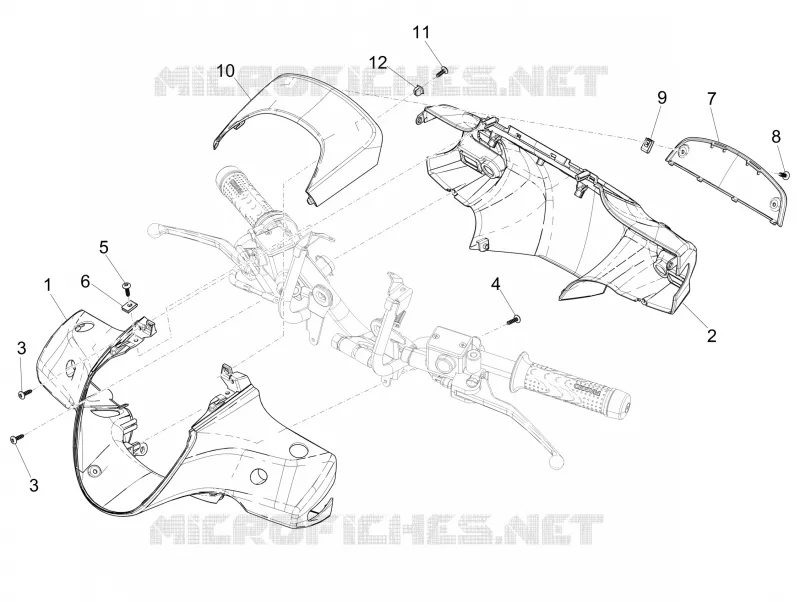

Handlebars coverages
6
Parts Diagram
Parts Catalog
Fork's components (Kayaba)
by
Front glove-box - Knee-guard panel
Handlebars coverages
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
3
3
4
5
6
7
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
1
Couvre-guidon avant
1B002077000S5
$53,44 Unit Price incl. VAT
1
Couvre-guidon avant
1B002077000R7
Not Available
1
Couvre-guidon avant
1B002077000NS
$28,86 Unit Price incl. VAT
1
Couvre-guidon avant
1B002077000BR
Not Available
1
Couvre-guidon avant
1B002077000VL
Not Available
1
Couvre-guidon avant
1B002077000D05
$28,69 Unit Price incl. VAT
1
Couvre-guidon avant
1B002077000VT
Not Available
1
Couvre-guidon avant
1B002077000BT
Not Available
1
Couvre-guidon avant
1B002077
$10,30 Unit Price incl. VAT
1
Couvre-guidon avant
1B002077000HR
$31,04 Unit Price incl. VAT
1
Couvre-guidon avant
1B002077000DE
Not Available
1
Couvre-guidon avant
1B002077000EZ
Not Available
1
Couvre-guidon avant
1B002077000DU
$43,42 Unit Price incl. VAT
1
Couvre-guidon avant
1B002077000S7
Not Available
1
Couvre-guidon avant
1B002077000ND
Not Available
1
Couvre-guidon avant
1B002077000HI
Not Available
2
Couvre-guidon arrière
1B002078000MH
$7,01 Unit Price incl. VAT
2
Couvre-guidon arrière
1B0020780000C
$6,35 Unit Price incl. VAT
3
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
4
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
5
Self tapping screw 4,2x16
CM178606
$0,16 Unit Price incl. VAT
6
Spring plate
CM017409
$0,08 Unit Price incl. VAT
7
Element
1B0020800000C
$1,10 Unit Price incl. VAT
7
Element
1B002080000MH
$1,31 Unit Price incl. VAT
8
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
9
Spring plate
CM017410
$0,34 Unit Price incl. VAT
10
Coupole
1B002079
$1,97 Unit Price incl. VAT
10
Coupole
1B002079000ND
$11,17 Unit Price incl. VAT
10
Coupole
1B002079000EZ
$9,14 Unit Price incl. VAT
10
Coupole
1B002079000HI
Not Available
10
Coupole
1B002079000BT
Not Available
10
Coupole
1B002079000VT
$12,48 Unit Price incl. VAT
10
Coupole
1B002079000S7
Not Available
10
Coupole
1B002079000DE
$10,07 Unit Price incl. VAT
10
Coupole
1B002079000BR
$9,20 Unit Price incl. VAT
10
Coupole
1B002079000NS
$9,90 Unit Price incl. VAT
10
Coupole
1B002079000DU
$17,08 Unit Price incl. VAT
10
Coupole
1B002079000VL
Not Available
10
Coupole
1B002079000D05
$9,85 Unit Price incl. VAT
10
Coupole
1B002079000HR
$11,33 Unit Price incl. VAT
10
Coupole
1B002079000R7
$10,07 Unit Price incl. VAT
10
Coupole
1B002079000S5
$21,30 Unit Price incl. VAT
11
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
12
Expansion plug
157716
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
