1
Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Saddle/seats
by
CRANKSHAFT

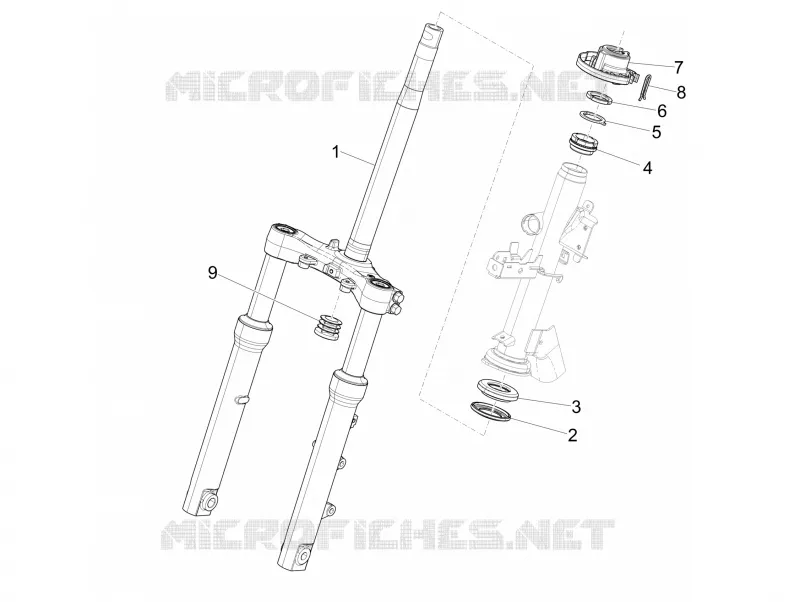

Fork/steering tube - Steering bearing unit
1
1
2
3
4
5
6
7
8
9
1
Fourchette compl.
1C004246
Not Available
1
Fourche avant complète
1C003822
$266,30 Unit Price incl. VAT
2
Rondelle de protection
5A001442
$4,78 Unit Price incl. VAT
3
Rondelle de butée inférieure
1C001608
Not Available
4
Upper thrust ring
6506934
Not Available
5
Steering security plate
582787
$3,65 Unit Price incl. VAT
6
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
7
Collier
1B002074
$1,92 Unit Price incl. VAT
8
Elastic spring
672491
$1,01 Unit Price incl. VAT
9
Cover
781276
$5,38 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
