1
Engine displacement
125
2
Model
MEDLEY
3
Year
2016
4
Trim
Medley 4T ie ABS
5
Parts Catalog
Brakes pipes - Calipers (ABS)
6
Parts Diagram
Parts Catalog
Oil pump
by
WATERPUMP

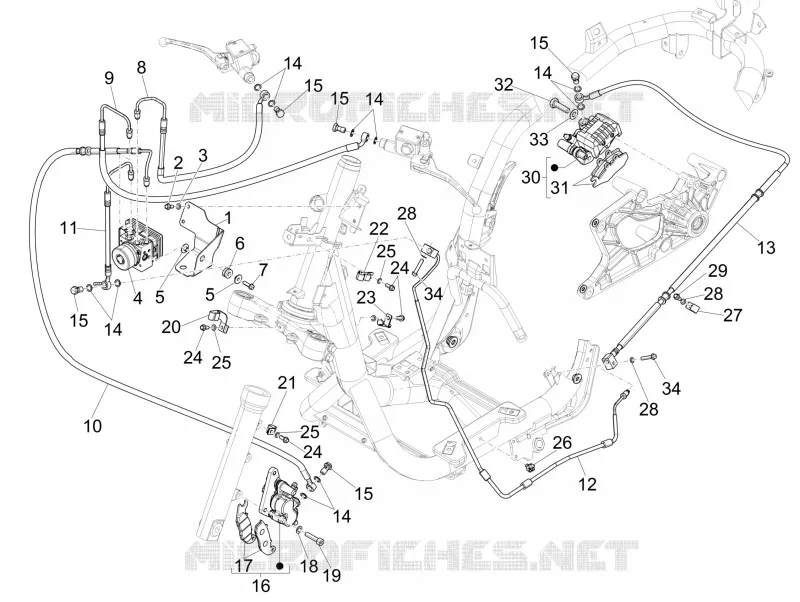

Brakes pipes - Calipers (ABS)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
14
14
14
14
15
15
15
15
15
16
17
18
18
19
20
21
22
23
24
24
24
25
25
25
26
27
28
28
29
30
30
31
31
32
33
34
34
1
Bride de support ABS
1C001657
$5,64 Unit Price incl. VAT
2
Screw w/ flange M6x14
874554
$0,25 Unit Price incl. VAT
3
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
4
Unité de commande électro-hydraulique ABS
1C001330
Not Available
5
Spacer
1C000253
$0,34 Unit Price incl. VAT
6
Pad
939278
$0,34 Unit Price incl. VAT
7
Hex screw M6x20
018639
$0,16 Unit Price incl. VAT
8
Tuyau maître-cylindre de frein D-unité ABS
1C001482
$48,93 Unit Price incl. VAT
9
Tuyau maître-cylindre de frein G-unité ABS
1C001483
$40,05 Unit Price incl. VAT
10
Tuyau unité ABS étrier avant
1C002435
$48,32 Unit Price incl. VAT
11
Tuyau flexible unité ABS-Tuyau rigide
1C001485
$28,67 Unit Price incl. VAT
12
Tuyau rigide frein arrière
1C001407
$85,82 Unit Price incl. VAT
13
Durit de frein étrier arr.
1C001874
$53,32 Unit Price incl. VAT
14
Gasket
127927
$0,25 Unit Price incl. VAT
15
Special screw
1C002059R
$2,02 Unit Price incl. VAT
16
Pince frein avant
1C001728R
Not Available
17
Brake pads couple
1C000760
$33,08 Unit Price incl. VAT
18
Spring washer
709047
$0,08 Unit Price incl. VAT
19
screw
598921
$0,56 Unit Price incl. VAT
20
Collier
1C002008
$0,72 Unit Price incl. VAT
21
Hose clamp
1C001420
$13,26 Unit Price incl. VAT
22
Collier
1C002007
$0,55 Unit Price incl. VAT
23
Collier
1C002009
$0,66 Unit Price incl. VAT
24
Screw w/ flange M6x14
874554
$0,25 Unit Price incl. VAT
25
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
26
Spring
179013
$0,42 Unit Price incl. VAT
27
Hose clamp
598795
$2,27 Unit Price incl. VAT
28
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
29
Screw w/ flange M6x14
874554
$0,25 Unit Price incl. VAT
30
Right brake pin
CM068305
$233,55 Unit Price incl. VAT
30
Étrier de frein D
CM068323
$76,12 Unit Price incl. VAT
31
Paire de plaquettes de frein
1C002714
$62,69 Unit Price incl. VAT
31
Brake pads kit
647079
$36,45 Unit Price incl. VAT
32
Vis M10x1,25x35
B004264
$0,37 Unit Price incl. VAT
33
Washer
709646
Not Available
34
Screw w/ flange M6x30
289731
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
