Swinging arm for GILERA PIAGGIO VESPA Liberty iGet 4T 3V ie ABS from 2017

Selectors - Switches - Buttons

Front glove-box - Knee-guard panel

Swinging arm

1

BRACCIO OSCIL.TE LATO TELAIO COMPL.

1C001174

$49,79 Unit Price incl. VAT

2

BOCCOLA A RULLINI C.TE

56127R

$5,55 Unit Price incl. VAT

3

ANELLO DI TENUTA

1C001341

$1,43 Unit Price incl. VAT

4

BUSSOLA

1C001298

$2,10 Unit Price incl. VAT

5

GUARNIZIONE

1C001299

$0,34 Unit Price incl. VAT

6

DISTANZIALE PER BRACCIO OSCILLANTE

1C001494

$10,95 Unit Price incl. VAT

7

VITE TESTA ESAG. PARZIALM. FILETTATO

597080

$6,60 Unit Price incl. VAT

8

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

9

DADO AUTOFRENANTE M10

002440

$0,34 Unit Price incl. VAT

10

BRACCIO OSCILLANTE LATO MOTORE COMPLETO

1C001995

$157,24 Unit Price incl. VAT

11

BOCCOLA A RULLINI C.TE

56127R

$5,55 Unit Price incl. VAT

12

ANELLO DI TENUTA

1C001341

$1,43 Unit Price incl. VAT

13

BUSSOLA

1C001298

$2,10 Unit Price incl. VAT

14

DISTANZIALE PER BRACCIO OSCILLANTE

1C000440

$15,38 Unit Price incl. VAT

15

VITE TESTA ESAG. PARZIALM. FILETTATO

597081

$5,20 Unit Price incl. VAT

16

STAFFA SUPPORTO SILENT BLOCK CON P.I.

1C001997

$49,79 Unit Price incl. VAT

17

Silent-block

668514

Not Available

18

ANELLO ELASTICO

006416

$0,08 Unit Price incl. VAT

19

VITE

1C001844

$0,67 Unit Price incl. VAT

20

RONDELLA PIANA D20 F8,2

013861

$0,25 Unit Price incl. VAT

21

Nut

709052

$1,10 Unit Price incl. VAT

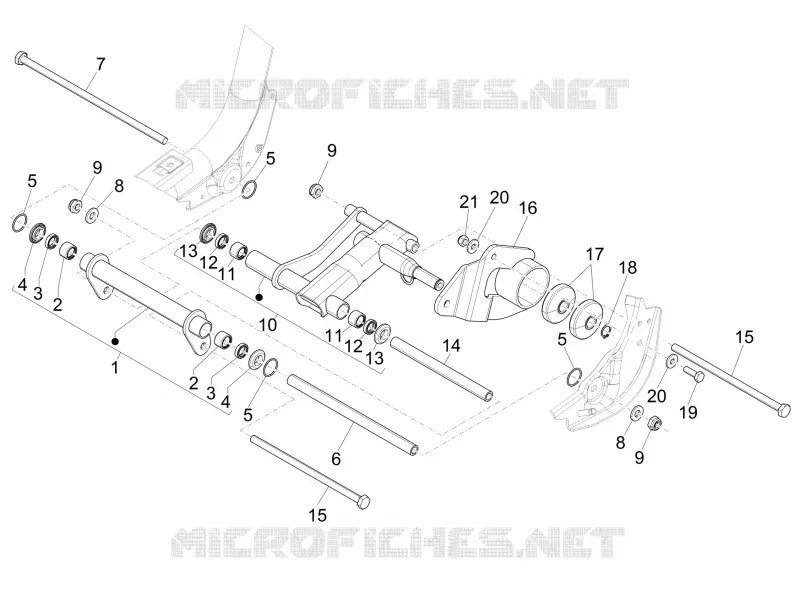

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
