Flywheel magneto cover - Oil filter for GILERA PIAGGIO VESPA Liberty iGet 4T 3V ie ABS from 2017

Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

Fork's components (Wuxi Top)

Flywheel magneto cover - Oil filter

1

Oil filter plug

B015456

$14,30 Unit Price incl. VAT

2

GUARNIZIONE OR 31,47x1,78

285536

$0,92 Unit Price incl. VAT

3

FILTRO OLIO ASPIRAZIONE COMPLETO

B015454

$2,52 Unit Price incl. VAT

4

ANELLO OR 20,35X1,78

288474

$0,08 Unit Price incl. VAT

5

Oil filter

82635R

$12,36 Unit Price incl. VAT

6

VITE SPECIALE FILTRO OLIO

B015455

$3,87 Unit Price incl. VAT

7

Oil pressure sensor

641541

Not Available

8

VITE AUTOFILETTANTE

1A001106

$0,08 Unit Price incl. VAT

9

Washer 10,5x17x1,5

B015988

$3,65 Unit Price incl. VAT

10

CORONA POMPA OLIO

287913

$6,47 Unit Price incl. VAT

11

VITE TEF M6X14

B016426

$0,42 Unit Price incl. VAT

12

MOLLA A TAZZA

B015991

$0,34 Unit Price incl. VAT

13

VITE TCIC M5X12

015585

$0,08 Unit Price incl. VAT

14

Complete flywheel side duct

1A003745

Not Available

15

BOCCOLA FLANGIATA ZIGRINATA

B015908

$1,18 Unit Price incl. VAT

16

VITE TESTA CIL. IMPR. ESA.

1A001680

$0,25 Unit Price incl. VAT

17

ASTA LIVELLO OLIO COMPLETA

1A000619

$2,19 Unit Price incl. VAT

18

O-ring

479986

Not Available

19

RONDELLA PIANA 5,3x10x0,8

003055

$0,08 Unit Price incl. VAT

20

COPERCHIO VOLANO CON P.I. x ric.

8798545

$158,88 Unit Price incl. VAT

21

Gasket ring 14x28x7

B015692

$5,20 Unit Price incl. VAT

22

GUARNIZIONE COPERCHIO VOLANO

877671

$4,12 Unit Price incl. VAT

23

VITE ESAGONALE FLANGIATA M6x30

B016792

$0,25 Unit Price incl. VAT

24

VITE M6x35

1A000348

$2,25 Unit Price incl. VAT

25

VITE TEF M6x50

1A000349

$0,42 Unit Price incl. VAT

26

VITE FLANGIATA A TESTA ESAGONALE

B016776

$0,67 Unit Price incl. VAT

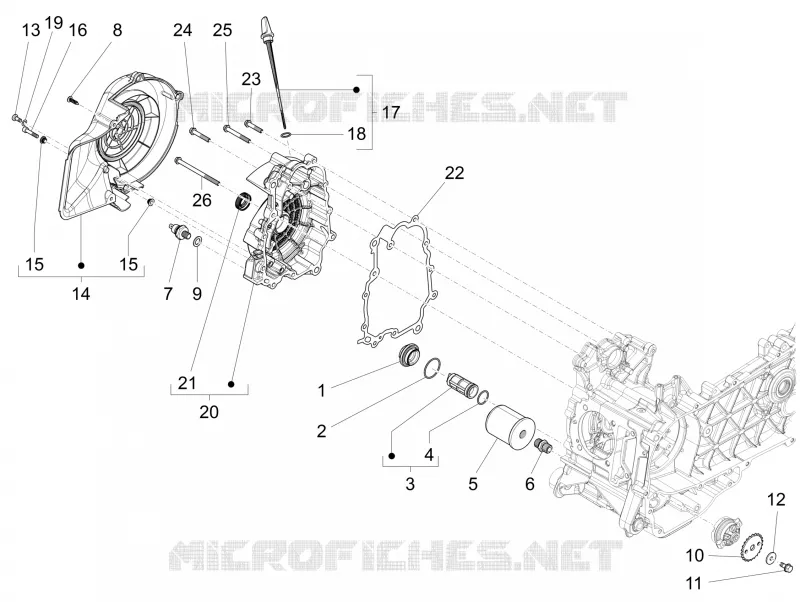

Find the detailed Flywheel magneto cover - Oil filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
