Crankcase for GILERA PIAGGIO VESPA Liberty 4T PTT (SL) from 2013

Crankcase

1

Complete crankcase Cat.2

CM1485205002

Not Available

2

SCODELLINO

840489

$0,33 Unit Price incl. VAT

3

SPINA RIFERIMENTO (D.9,5 H=15)

B015956

$0,75 Unit Price incl. VAT

4

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

5

UGELLO CALIBRATO

484034

$6,44 Unit Price incl. VAT

6

BUSSOLA (GRUPPO RINVIO)

431860

$3,70 Unit Price incl. VAT

7

CUSCINETTO RADIALE 15.42.13

83018R

$4,46 Unit Price incl. VAT

8

Radial ball bearing 20x47x14

833701

Not Available

9

PERNO AGG. MOLLE CAVALLETTO

483785

$5,45 Unit Price incl. VAT

10

SILENTBLOC ATT.MOTORE

486081

$6,73 Unit Price incl. VAT

11

Stud bolt

411295

$1,58 Unit Price incl. VAT

12

ANELLO ELASTICO (12x26,9x1,2)

B015959

$0,34 Unit Price incl. VAT

13

ANELLO DI TENUTA 20-32-7

82878R

$10,25 Unit Price incl. VAT

14

ANELLO DI TENUTA

82898R

$4,36 Unit Price incl. VAT

15

GRANO DI RIFERIMENTO

B015957

$0,59 Unit Price incl. VAT

16

UGELLO CALIBRATO PER CARTER D.1,1

844582

$0,05 Unit Price incl. VAT

17

GUARNIZIONE SEMICARTER

875111

$3,34 Unit Price incl. VAT

18

VITE TESTA ESAG. FLANG. M6x60 UNI-1665

B016425

$1,01 Unit Price incl. VAT

19

GRANO DI RIFERIMENTO (Ø7,5, H=12)

277916

$0,34 Unit Price incl. VAT

20

PARATIA OLIO

483767

$0,38 Unit Price incl. VAT

21

PARATIA OLIO SUPERIORE

485047

$0,48 Unit Price incl. VAT

22

Screw M5x10

018575

$2,95 Unit Price incl. VAT

23

INSERTO PORTA FILTRO COMPL.

845861

$3,82 Unit Price incl. VAT

24

GUARNIZIONE SEZ.CIRCOLARE

431065

$0,42 Unit Price incl. VAT

25

MOLLA VALVOLA PRESS.OLIO

485655

$1,26 Unit Price incl. VAT

26

ASTA LIVELLO OLIO COMPL.

832130

$2,94 Unit Price incl. VAT

27

ANELLO DI TENUTA (O-RING)

827085

$2,99 Unit Price incl. VAT

28

VALVOLA REGOL.PRESSIONE OLIO

829661

$6,44 Unit Price incl. VAT

29

LAMIERINO FISS. CAVO

876657

$5,38 Unit Price incl. VAT

30

VITE A TESTA ESAGONALE FLANGIATA

830061

$0,34 Unit Price incl. VAT

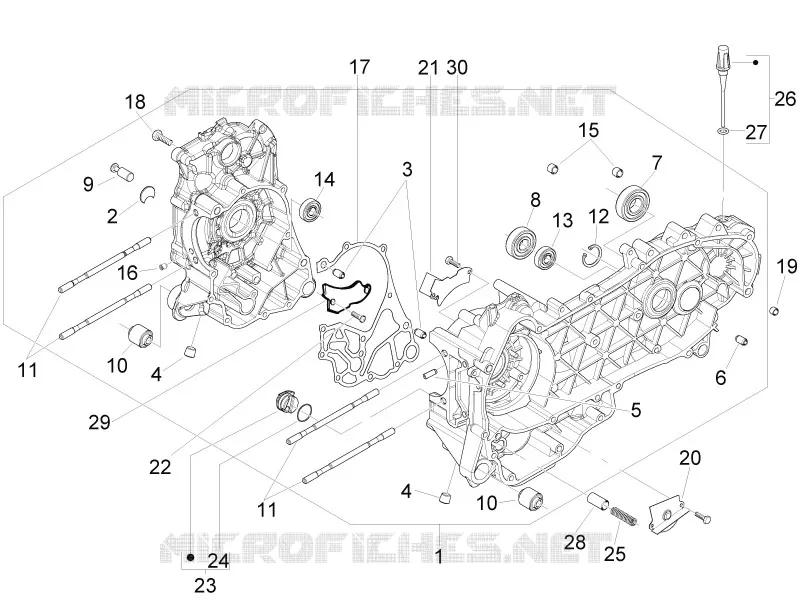

Find the detailed Crankcase GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
