Handlebars - Master cil. for GILERA PIAGGIO VESPA Liberty 4T PTT (SL) from 2013

Handlebars - Master cil.

1

MANUBRIO CPI LIBERTY PTT

6223595

$71,77 Unit Price incl. VAT

2

VITE A TESTA CILINDRICA ESAGONO INCASS.

655554

$3,70 Unit Price incl. VAT

3

RONDELLA ELASTICA PIANA DENT.INTERNA

012543

$0,08 Unit Price incl. VAT

4

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

5

ECROU

015330

$0,25 Unit Price incl. VAT

6

Throttle control sleeve assembly

CM079712

Not Available

7

MANOPOLA SX LIBERTY PTT

581797

$4,44 Unit Price incl. VAT

8

MANOPOLA DX LIBERTY PTT

581796

$3,97 Unit Price incl. VAT

9

TRASMISSIONE COM. CHIUSURA GAS

649207

$30,58 Unit Price incl. VAT

10

TRASMISSIONE COM. APERTURA GAS

649206

$32,32 Unit Price incl. VAT

11

RONDELLA

582264

$0,94 Unit Price incl. VAT

12

PORTALEVA SINISTRO COMPL.

667218

$32,43 Unit Price incl. VAT

13

LEVA FRENO SX

648083

$22,22 Unit Price incl. VAT

14

VITE-BUSSOLA BLOCCAGGIO MANOPOLA

123394

$3,70 Unit Price incl. VAT

15

MOLLA SX

267948

$4,89 Unit Price incl. VAT

16

VITE

030039

$3,70 Unit Price incl. VAT

17

DADO AUTOFR. M5-6H UNI 4721

012112

$0,29 Unit Price incl. VAT

18

POMPA COMANDO FRENO ANT.

CM074902

$125,55 Unit Price incl. VAT

19

LEVA FRENO

497042

$18,36 Unit Price incl. VAT

20

TERMINALE

581789

$17,17 Unit Price incl. VAT

21

screw M6x55

271434

Not Available

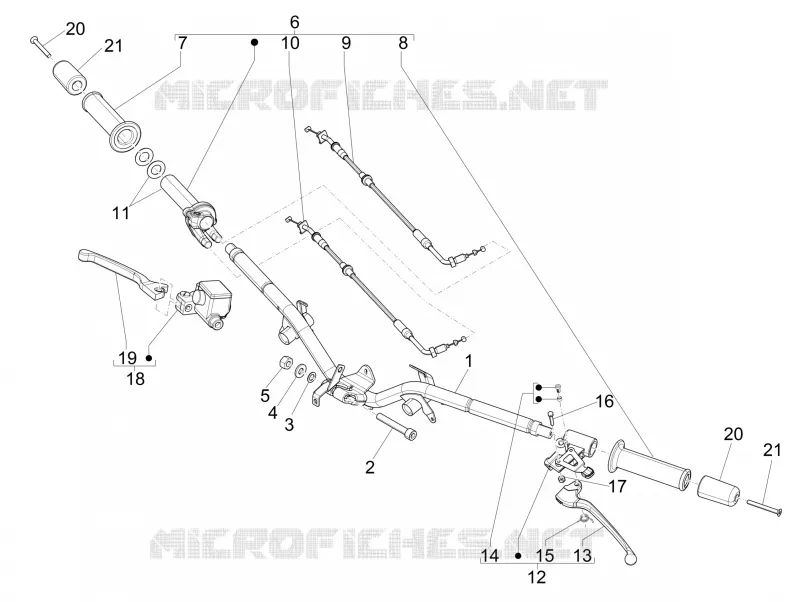

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
