Parts Catalog
Handlebars covers
6
Parts Diagram
Parts Catalog
Instrument unit
by
Handlebars-Master cylinders

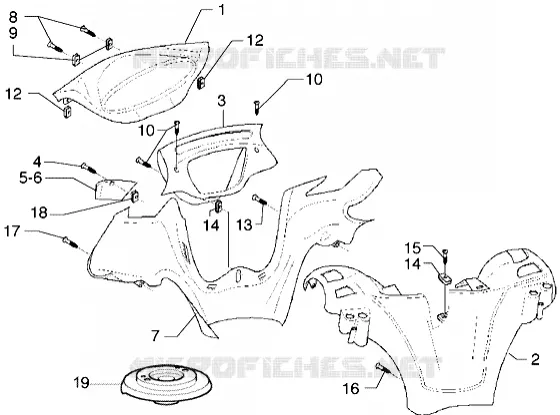

Handlebars covers
1
2
3
4
5
6
7
8
9
10
10
12
12
13
14
14
15
16
17
18
19
1
Dashboard upper part
576835000P
$36,58 Unit Price incl. VAT
2
Rear handlebars cover
598219000P
Not Available
3
Handlebar grill
58149350N5
Not Available
4
Hex socket screw
581957
$0,16 Unit Price incl. VAT
5
RH pump cover
581496000P
$5,38 Unit Price incl. VAT
6
LH pump cover
581497000P
$5,38 Unit Price incl. VAT
7
Front handlebars cover
581494000P
$18,75 Unit Price incl. VAT
8
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
9
Plate
008080
$5,38 Unit Price incl. VAT
10
Screw m5x25
581175
$0,17 Unit Price incl. VAT
12
Spring plate
826275
Not Available
13
Self tapping screw M4,2x25
259372
$2,99 Unit Price incl. VAT
14
Spring plate
185802
$5,38 Unit Price incl. VAT
15
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
16
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
17
Screw d4x20
227983
$3,65 Unit Price incl. VAT
18
Spring plate
581956
Not Available
19
Guard
621496
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
