Engine displacement
500
2
Model
X9
3
Year
0
4
Trim
X9
5
Parts Catalog
Flywheel magneto
6
Parts Diagram
Parts Catalog
Electric starter
by
Induction pipe-Throttle body-Injector
Flywheel magneto
1
3
4
5
6
7
8
9
10
11
12
14
15
16
1
Sprag clutch
831322
Not Available
2
Cdi magneto assy
8287785
Not Available
3
Rotor
8287795
Not Available
3
Rotor
58040R
Not Available
4
Backplate, assy.
82736R
Not Available
4
Stator
828677
Not Available
4
Backplate, assy.
58039R
Not Available
5
Hex socket screw M6x25
840893
$0,41 Unit Price incl. VAT
5
Screw m.6x25
825443
Not Available
6
Nut M14x1,5
827116
$1,60 Unit Price incl. VAT
7
Low head socket screw M6x30
122637
$0,28 Unit Price incl. VAT
8
Starter motor gear
82737R
$81,00 Unit Price incl. VAT
8
Starter motor gear
832110
Not Available
9
Flat washer 14.1x30x3
825725
$1,77 Unit Price incl. VAT
10
Ring container lamination
828109
$4,82 Unit Price incl. VAT
11
Screw M5x16
015715
$2,25 Unit Price incl. VAT
12
Transmission key
000097
$5,21 Unit Price incl. VAT
13
Sprag clutch
831322
Not Available
14
Plate
830886
$4,82 Unit Price incl. VAT
15
Screw M5x10
018575
$2,95 Unit Price incl. VAT
16
Break washer
479515
$0,08 Unit Price incl. VAT

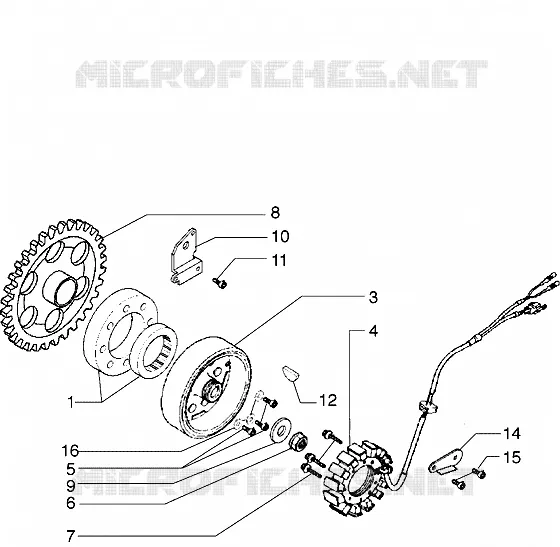

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
