Engine displacement
200
2
Model
X9
3
Year
0
4
Trim
X9 Evolution
5
Parts Catalog
Central stand
6
Parts Diagram
Parts Catalog
Swinging arm
by
Shield
Central stand
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Self locking nut M10
232108
Not Available
2
Lateral stand
582625
$21,87 Unit Price incl. VAT
3
Sec. screw
583155
$5,90 Unit Price incl. VAT
4
Pad
272426
Not Available
5
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
6
screw M6x16
031088
$0,17 Unit Price incl. VAT
7
Spring
598907
Not Available
7
Spring
295789
$4,82 Unit Price incl. VAT
8
Spring
598906
Not Available
9
Gasket
191189
$0,17 Unit Price incl. VAT
10
Split pin
012770
Not Available
11
Switch
582633
$58,05 Unit Price incl. VAT
12
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
13
Central stand
582307
Not Available
14
Spring
564061
$1,77 Unit Price incl. VAT
15
Spring
564060
$7,61 Unit Price incl. VAT
16
Screw m10x35 if
031159
$3,65 Unit Price incl. VAT
17
Bushing
581466
$2,91 Unit Price incl. VAT
18
Plain washer 10,4x18x2
016626
$0,08 Unit Price incl. VAT
19
Self locking nut M10
232108
Not Available
20
Pad
582302
Not Available

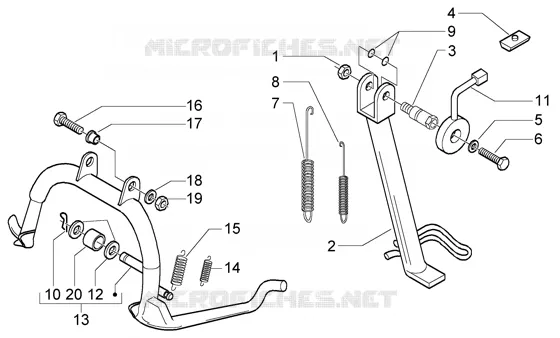

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
