Parts Catalog
Rear wheel shaft
6
Parts Diagram
Parts Catalog
Pump group-oil pan
by
Driving pulley
Rear wheel shaft
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
1
Driven pulley shaft
4858795
Not Available
2
Wheel axle
8322545
Not Available
3
Oil seal 38x50x7
829201
Not Available
4
Circlip
829206
$0,67 Unit Price incl. VAT
5
Radial ball bearing 15x42x13
485912
Not Available
6
Cover
8322495
Not Available
7
Circlip 25x26.9x1.2
000674
Not Available
8
Radial bearing 30x55x13
82659R
Not Available
9
Transmission shaft
8319145
$266,37 Unit Price incl. VAT
10
Breather
830862
$4,02 Unit Price incl. VAT
12
Gasket
487383
Not Available
13
Radial ball bearing 15x42x13
485912
Not Available
14
Gasket ring
82539R
Not Available
15
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
16
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
17
Screw w/ flange M8x45
487211
$0,29 Unit Price incl. VAT
18
Hose clamp
487948
$0,43 Unit Price incl. VAT
19
screw M8x40
825758
$0,33 Unit Price incl. VAT

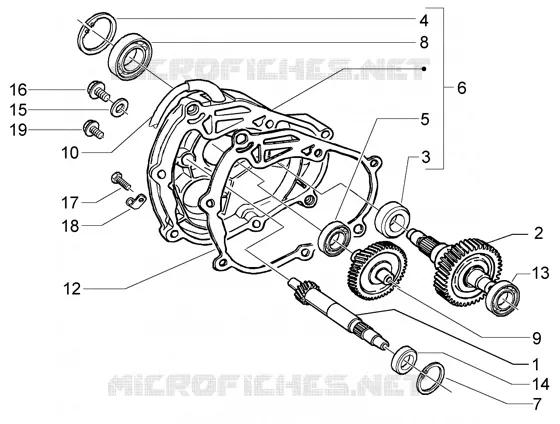

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
