Parts Catalog
Handlebars-Master cylinder
6
Parts Diagram
Parts Catalog
Crankshaft
by
Brake piping
Handlebars-Master cylinder
1
2
4
4
5
5
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
1
Grip, r.h.
271453
$13,37 Unit Price incl. VAT
2
Throttle transmiss.
CM065911
Not Available
4
screw M6x55
271434
Not Available
5
End terminal
271433
$20,41 Unit Price incl. VAT
5
Terminal
583697
$26,25 Unit Price incl. VAT
6
THROTTLE SLEEVE X9 125
CM060930
$31,48 Unit Price incl. VAT
7
Master cil. r.h.
CM070701
Not Available
8
Brake lever (Brembo)
646829
$27,00 Unit Price incl. VAT
8
Brake lever
497031
Not Available
9
Brake pump plug
497032
$14,89 Unit Price incl. VAT
10
stop Button
584480
Not Available
10
stop Button
580645
Not Available
10
stop Button
583575
$3,26 Unit Price incl. VAT
11
Master cil. l.h.
CM070704
Not Available
12
Grip, l.h.
271452
$13,37 Unit Price incl. VAT
13
Handlebar
5818804
$85,30 Unit Price incl. VAT
14
screw
223605
Not Available
15
Flat washer
178790
$0,51 Unit Price incl. VAT
16
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
17
Nut M10
015330
$0,25 Unit Price incl. VAT
18
Adjuster screw
269145
$1,30 Unit Price incl. VAT

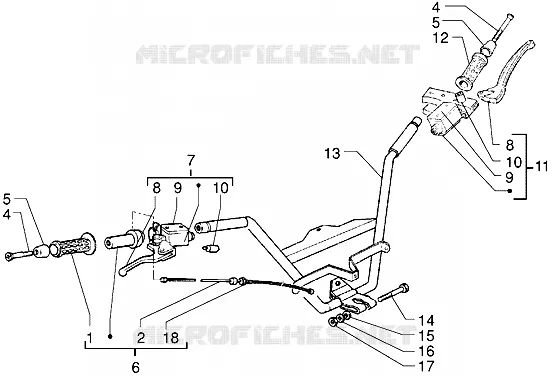

Find the detailed Handlebars-Master cylinder GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
