Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Silencer
by
Swinging arm
Frame
1
2
3
3
4
4
4
4
4
5
5
6
6
7
8
8
8
9
10
11
12
12
13
14
14
15
16
17
18
19
20
21
22
1
Frame
6209295
$406,35 Unit Price incl. VAT
1
Frame
5758776
Not Available
2
Front frame
5828494
Not Available
2
Frame
620207
Not Available
3
screw M6x16
031088
$0,17 Unit Price incl. VAT
4
Washer 6,2x18x2
013950
$0,34 Unit Price incl. VAT
5
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
6
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
7
Pin L..H.
CM0102034
$104,82 Unit Price incl. VAT
7
Pin l.h.
CM0102014
Not Available
8
screw M6x16
031088
$0,17 Unit Price incl. VAT
9
Pin r.h.
CM0102024
$104,82 Unit Price incl. VAT
10
Screw m6x55
030059
$2,95 Unit Price incl. VAT
11
Rear frame
5755444
Not Available
12
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
13
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
14
Screw m8x18 zn
031117
$0,19 Unit Price incl. VAT
15
Lock support
575357
$24,90 Unit Price incl. VAT
16
Flat washer 8,4x18x2
003038
$0,25 Unit Price incl. VAT
17
Crosspiece
5755424
Not Available
17
Cross member
620869
Not Available
18
Bracket
583000
Not Available
18
plate
599954
$196,89 Unit Price incl. VAT
19
Bush
273460
$0,75 Unit Price incl. VAT
20
Silent-block
272750
$12,52 Unit Price incl. VAT
21
Self locking nut M10
232108
Not Available
22
Bolt
031153
$3,65 Unit Price incl. VAT

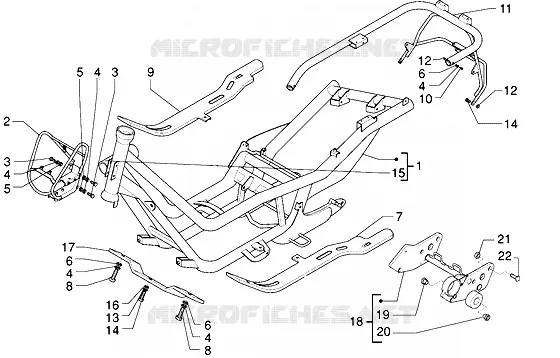

Find the detailed Frame GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
