Engine displacement
125
2
Model
TYPHOON
3
Year
0
4
Trim
Typhoon X
5
Parts Catalog
Cylinder-piston-wrist pin, assy
6
Parts Diagram
Parts Catalog
Fuel system
by
Cylinder head-cooling hood-inlet and induction pipe
Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
8
1
Soundpr.pan
433693
Not Available
2
Gasket
430213
Not Available
2
Gasket
432663
Not Available
2
Gasket
432668
Not Available
2
Gasket
432667
Not Available
2
Gasket
432665
Not Available
2
Gasket
432666
Not Available
2
Gasket
432664
Not Available
3
Ring
430393
Not Available
4
Ring
482845
Not Available
5
Piston pin
2239414
$2,75 Unit Price incl. VAT
6
Pist.-wrist pin assy.
8299850003
Not Available
6
Pist.-wrist pin assy.
8299850004
Not Available
6
Pist.-wrist pin assy.
4830910002
Not Available
6
Pist.-wrist pin assy.
4830910004
Not Available
7
Stud bolt
484706
$1,34 Unit Price incl. VAT
8
Cil.pis.as.
829984
$462,80 Unit Price incl. VAT

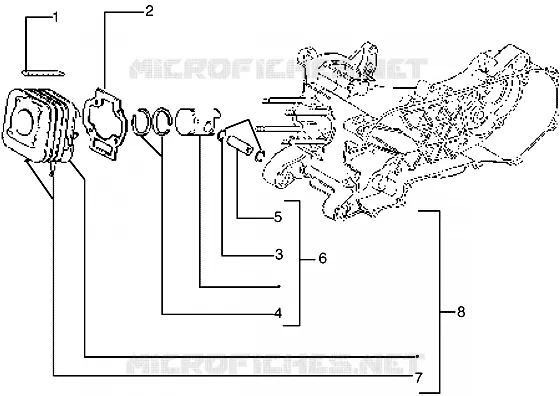

Find the detailed Cylinder-piston-wrist pin, assy GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
