Engine displacement
125
2
Model
TYPHOON
3
Year
0
4
Trim
Typhoon X
5
Parts Catalog
Swinging arm
6
Parts Diagram
Parts Catalog
Steering column
by
Rear shock absorber
Swinging arm
1
2
2
2
2
3
4
5
6
7
8
9
9
9
10
11
12
12
13
14
1
Spacer
CM067802
$8,01 Unit Price incl. VAT
2
Bush
273773
$3,65 Unit Price incl. VAT
3
Hex screw M10x245
563977
$3,70 Unit Price incl. VAT
4
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
5
Spacer
273765
Not Available
6
Hex socket screw M10x215
271779
$2,11 Unit Price incl. VAT
7
Sil.block
2727785
$28,28 Unit Price incl. VAT
8
Spacer
271395
Not Available
9
Self locking nut M10
232108
Not Available
10
Swinging arm
273463
Not Available
11
Spring
272329
Not Available
12
Oil seal
273774
$3,65 Unit Price incl. VAT
13
Swinging arm
273766
Not Available
14
Circlip
006416
$0,08 Unit Price incl. VAT

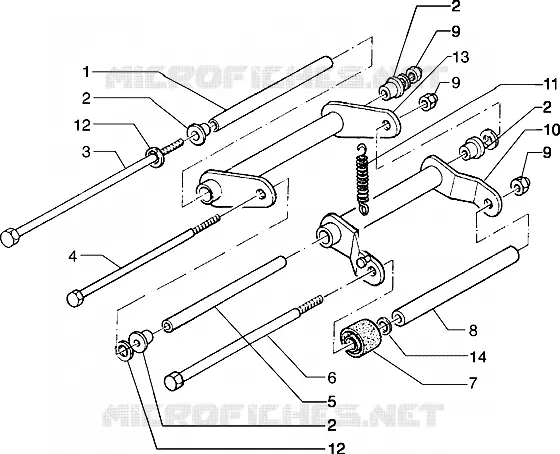

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
