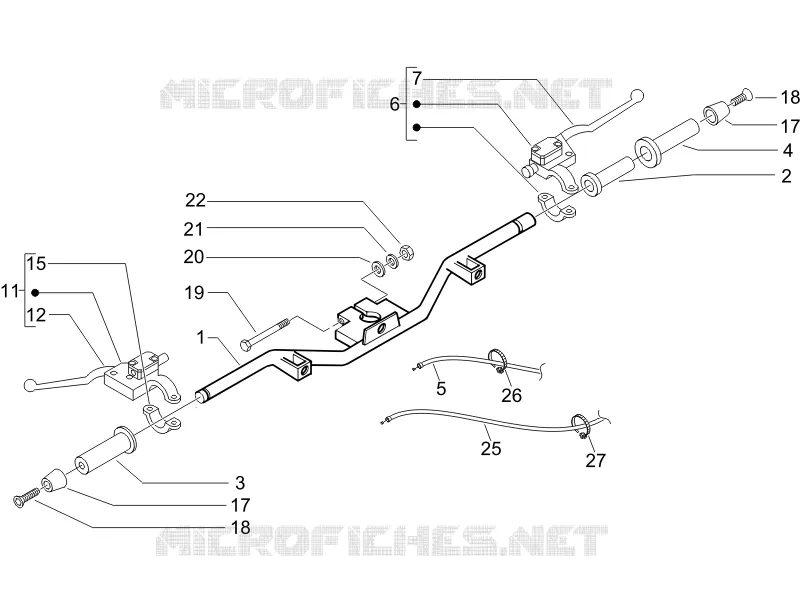

Handlebars - Master cil.
1
2
3
4
5
6
7
11
12
15
17
17
18
18
19
20
21
22
25
26
27
1
Handlebar with U.P.
653641
Not Available
1
Handlebar with U.P.
657131
Not Available
2
Hose
975633
Not Available
3
Complete left hand grip
648550
$22,29 Unit Price incl. VAT
4
Complete right hand grip
648551
$22,29 Unit Price incl. VAT
5
Throttle closing transmission
649160
$85,86 Unit Price incl. VAT
6
Right hydraulic pump (Brembo)
CM077412
Not Available
7
Brake lever (Brembo)
649196
$42,39 Unit Price incl. VAT
11
Left hydraulic pump (Brembo)
CM077413
Not Available
12
Brake lever (Brembo)
649196
$42,39 Unit Price incl. VAT
15
U-bolt Heng Tong
600478
$11,06 Unit Price incl. VAT
17
Handlebar terminal
653017
Not Available
17
Handlebar terminal
654603
$24,90 Unit Price incl. VAT
18
screw
576836
$3,03 Unit Price incl. VAT
19
Hex socket screw
655554
$3,70 Unit Price incl. VAT
19
screw
223605
Not Available
20
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
21
Flat washer
178790
$0,51 Unit Price incl. VAT
22
Nut M10
015330
$0,25 Unit Price incl. VAT
25
Throttle opening transmission
649161
Not Available
26
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
27
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
