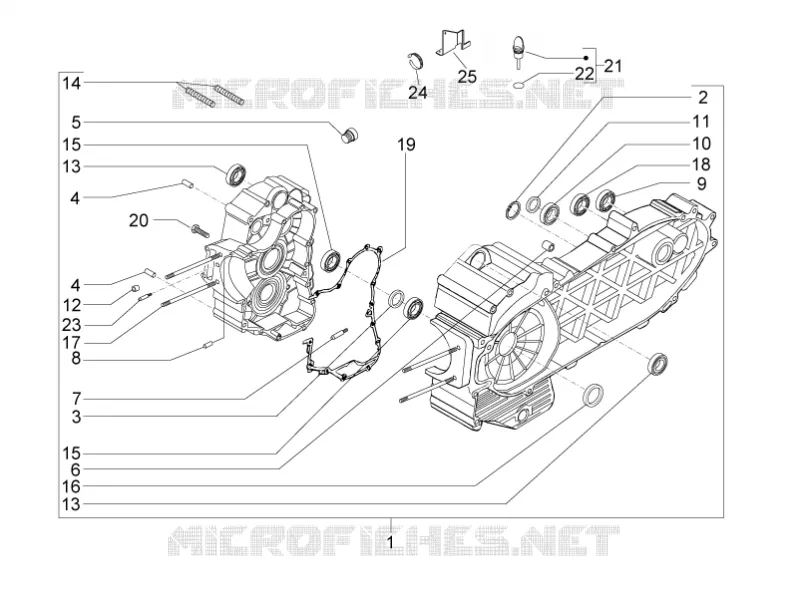

Crankcase
1
2
3
4
4
5
6
7
8
9
10
11
12
13
13
14
15
15
16
17
18
19
20
21
22
23
24
25
1
3rd cat. complete crankcase
CM1561015003
Not Available
1
3rd cat. complete crankcase
CM1568025003
$3 306,04 Unit Price incl. VAT
1
4th cat. complete crankcase
CM1561015004
Not Available
1
2nd cat. complete crankcase
CM1568025002
$3 306,04 Unit Price incl. VAT
1
Complete crankcase 1st cat.
CM1568025001
$3 306,04 Unit Price incl. VAT
1
Complete crankcase 1st cat.
CM1561015001
Not Available
1
4th cat. complete crankcase
CM1568025004
Not Available
1
2nd cat. complete crankcase
CM1561015002
Not Available
2
Circlip 25x26.9x1.2
000674
Not Available
3
Snap ring
006652
$0,76 Unit Price incl. VAT
4
Pin 6,5x9,5x15
239388
Not Available
5
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
6
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
7
Nozzle
484034
$6,44 Unit Price incl. VAT
8
Locating dowel
484993
$0,16 Unit Price incl. VAT
9
Radial ball bearing 15x42x13
485912
Not Available
10
Bearing 52x25x15
825233
$10,67 Unit Price incl. VAT
11
Gasket ring 40x25x7
873931
$11,11 Unit Price incl. VAT
12
Pin 11,8X10
825597
$0,94 Unit Price incl. VAT
13
Bearing 20x42x1
82656R
$8,51 Unit Price incl. VAT
14
Stud bolt M10X1.25X51
877282
$4,36 Unit Price incl. VAT
15
Bearing D20x52x15
82660R
$21,87 Unit Price incl. VAT
16
Gasket ring 35x47x7
873932
$8,70 Unit Price incl. VAT
17
Stud bolt M10X1.25X166
877281
$3,89 Unit Price incl. VAT
18
Radial ball bearing 20x47x14
833701
Not Available
19
Half crankcase gasket
828114
$14,65 Unit Price incl. VAT
19
Half crankcase gasket
872909
$18,86 Unit Price incl. VAT
20
Screw w/ flange M6x65
828909
$0,29 Unit Price incl. VAT
21
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
22
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT
23
Nozzle
825649
$1,11 Unit Price incl. VAT
24
Hose clamp
564629
$2,50 Unit Price incl. VAT
25
Bracket
834911
$8,91 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
