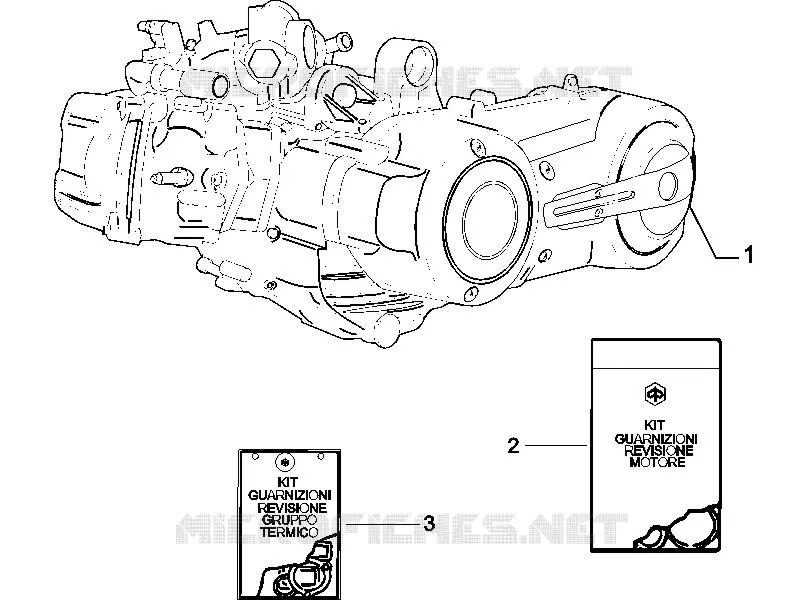

Engine, assembly
1
2
3
1
Motore 500 4T/4V Euro 3
CM1500185
Not Available
1
Motore 500 4T/4V Euro 3
CM1500105
Not Available
2
Kit guarnizioni completo
497528
Not Available
3
Cylinder gasket kit
497527
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
