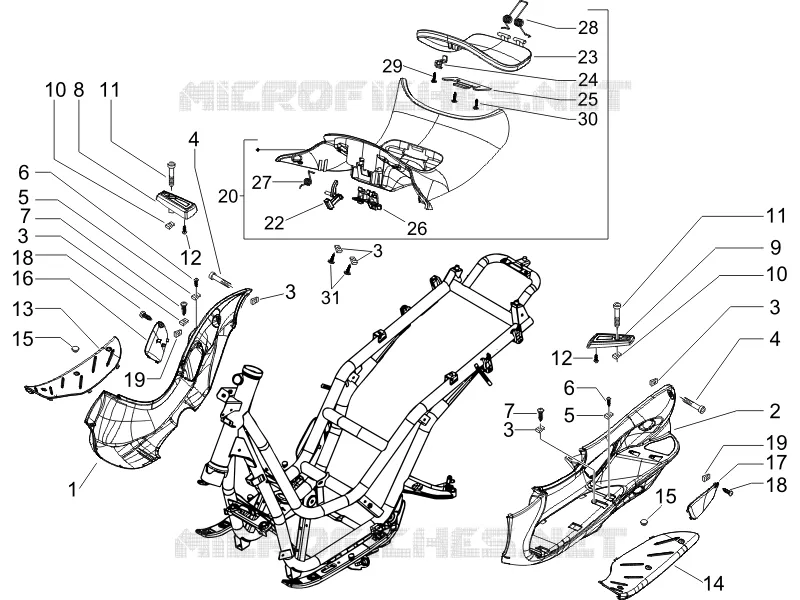

Central cover - Footrests
1
2
3
3
3
3
4
4
5
5
6
6
7
7
8
9
10
10
11
11
12
12
13
14
15
15
16
17
18
18
19
19
20
22
23
24
25
26
27
28
29
30
31
1
RH footrest
CM014204000C
$64,92 Unit Price incl. VAT
2
LH footrest
CM014203000C
$64,92 Unit Price incl. VAT
3
Spring plate
CM017410
$0,34 Unit Price incl. VAT
4
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
7
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
8
RH rear footrest
CM014402000C
$20,60 Unit Price incl. VAT
9
LH rear footrest
CM014401000C
$20,60 Unit Price incl. VAT
10
Spring plate M6
254485
$0,34 Unit Price incl. VAT
11
screw M6x40
272624
Not Available
12
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
13
Mat
CM008902
Not Available
14
Mat
CM008901
$77,31 Unit Price incl. VAT
15
Pin
CM011101
$5,38 Unit Price incl. VAT
16
Right lateral flap
CM014603000C
$19,68 Unit Price incl. VAT
17
Left lateral flap
CM014601000C
$19,68 Unit Price incl. VAT
18
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
19
Spring plate
CM017410
$0,34 Unit Price incl. VAT
20
Central cover
621004000C
$121,73 Unit Price incl. VAT
22
Cam lever
576626
$1,51 Unit Price incl. VAT
23
Fuel tank door
576376000C
$35,51 Unit Price incl. VAT
24
Square
299689
Not Available
25
Plate
575605
$5,38 Unit Price incl. VAT
26
Maintenance
620491
$1,43 Unit Price incl. VAT
27
Spring
575604
$0,92 Unit Price incl. VAT
28
Spring
621507
$2,77 Unit Price incl. VAT
29
Self tapping screw
297498
$0,08 Unit Price incl. VAT
30
TBCIC Screw
270793
$0,08 Unit Price incl. VAT
31
Self-tap screw
576189
$0,05 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
