Parts Catalog
Cylinder head-inlet and induction pipe
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin, assy
by
Transmission cover

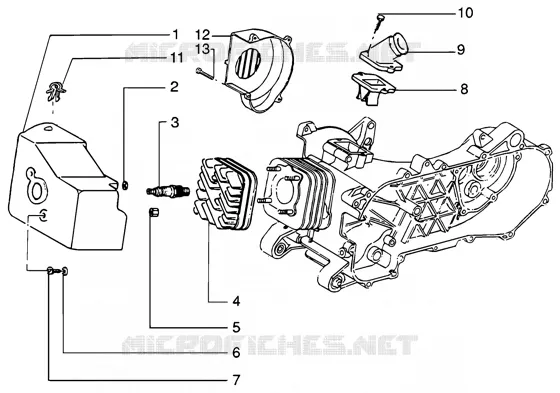

Cylinder head-inlet and induction pipe
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Coling hood
436719
$4,20 Unit Price incl. VAT
2
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
3
Spark plug
438034
$4,25 Unit Price incl. VAT
4
Cylinder head
2865345
Not Available
5
Spacer nut M6
288531
$1,06 Unit Price incl. VAT
6
Washer
078307
$0,17 Unit Price incl. VAT
7
screw M6x14
008375
$1,55 Unit Price incl. VAT
8
Reeds bracket
435867
Not Available
8
Reeds bracket
486353
Not Available
8
Reed valve assy
82827R
Not Available
9
Union pipe
436095
Not Available
10
screw M6x25
830487
Not Available
11
Spring
140435
$1,01 Unit Price incl. VAT
12
Scroll cover
827423
Not Available
12
Scroll cover
833817
$7,93 Unit Price incl. VAT
12
Scroll cover
487890
$15,22 Unit Price incl. VAT
13
screw M5x21
015856
$0,16 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
