Parts Catalog
Case helmet
6

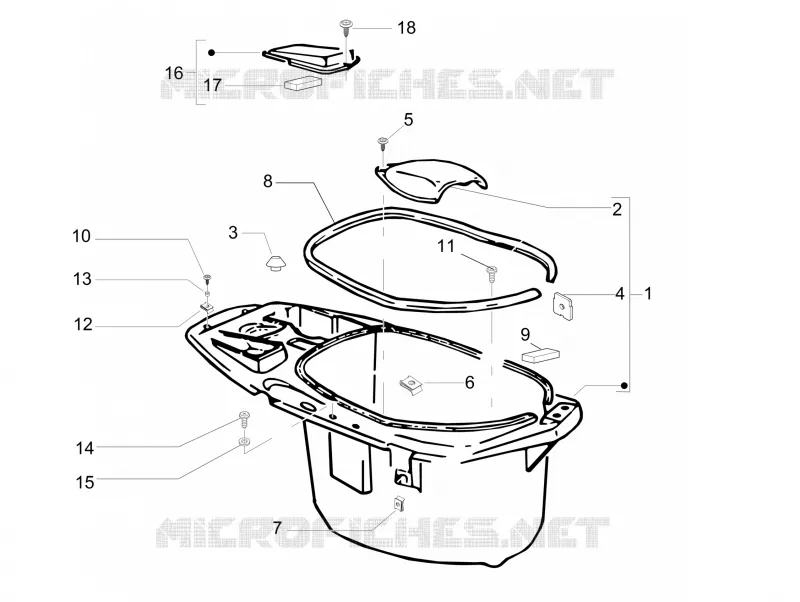

Parts Diagram
Parts Catalog
by
Flywheel magneto
Case helmet
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Helmet compartment
957274
$85,30 Unit Price incl. VAT
2
Flap
259790
$11,69 Unit Price incl. VAT
3
Stop buffer
296456
$2,77 Unit Price incl. VAT
4
Bracket
290405
$4,82 Unit Price incl. VAT
5
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
6
Spring plate
CM017410
$0,34 Unit Price incl. VAT
7
Spring plate M6
254485
$0,34 Unit Price incl. VAT
8
Gasket
257536
$17,83 Unit Price incl. VAT
9
Pad
257537
Not Available
10
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
11
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
13
Spacer
259828
$3,65 Unit Price incl. VAT
14
Screw M6x16
272836
$3,70 Unit Price incl. VAT
15
Washer
297029
$3,70 Unit Price incl. VAT
16
Flap
574328
$5,38 Unit Price incl. VAT
17
Pad
294312
Not Available
18
screw 4,2x19
258249
$0,09 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
