1
Engine displacement
50
2
Model
NRG
3
Year
0
4
Trim
NRG MC3 DD
5
Parts Catalog

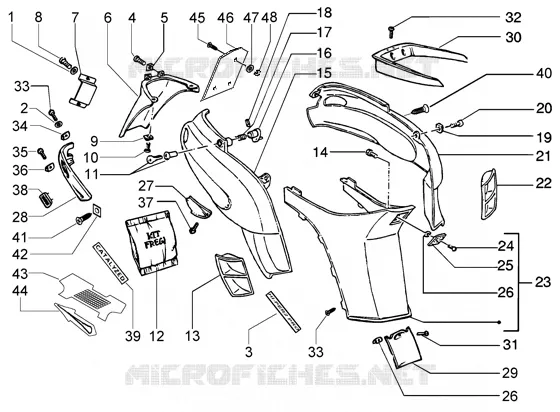

Side covers
6
Parts Diagram
Parts Catalog
Fuel tank
by
Front and rear mudguard
Side covers
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
Plain washer 5,4x10x0,8
003055
$0,08 Unit Price incl. VAT
2
Washer
709141
Not Available
3
"HI-PER2 PRO" plate
62174100A7
Not Available
3
"HI-PER2 PRO" plate
62174200A7
Not Available
3
"HI-PER2 PRO" plate
62174100A5
Not Available
3
"HI-PER2 PRO" plate
62174200A6
Not Available
3
"HI-PER2 PRO" plate
62174200A5
Not Available
3
"HI-PER2 PRO" plate
62174100A6
Not Available
3
"HI-PER2 PRO" plate
577328
Not Available
4
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
5
Spring plate M6
254485
$0,34 Unit Price incl. VAT
6
Guard
575144000C
Not Available
7
Number plate holder
2929224
Not Available
7
Number plate holder support
2924654
$2,41 Unit Price incl. VAT
8
Rivet
273074
$3,65 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
11
Cylinder set
2577032
$7,02 Unit Price incl. VAT
12
Trimmings kit
62054500A6
Not Available
12
Trimmings kit
62078200A7
Not Available
12
Trimmings kit
5769470004
Not Available
12
Trimmings kit
62000600A5
Not Available
12
Trimmings kit
62081500A8
Not Available
12
Trimmings kit
62173700A6
Not Available
12
Trimmings kit
62050100A6
Not Available
12
Trimmings kit
62078200A6
Not Available
12
Trimmings kit
62000600A6
Not Available
12
Trimmings kit
5769470008
Not Available
12
Trimmings kit
62081500A5
Not Available
12
Trimmings kit
62173700A4
Not Available
12
Trimmings kit
62050100A5
Not Available
12
Trimmings kit
62173700A7
Not Available
12
Trimmings kit
5769470006
Not Available
13
Air intake
957183000C
Not Available
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
15
RH SIDE COVER MC3 686
CM00460250A7
Not Available
15
RH SIDE COVER MC3 682
CM00460250B5
Not Available
15
RH SIDE COVER MC3 280
CM00460250A3
$135,30 Unit Price incl. VAT
15
RH SIDE COVER MC3 679
CM00460250N7
Not Available
15
Fairing
CM00460200GH
Not Available
15
Fairing
CM00460200EB
Not Available
15
RH SIDE COVER MC3 94
CM0046025090
$128,94 Unit Price incl. VAT
15
Fairing
CM00460200F2
Not Available
15
Fairing
CM00460200R7
Not Available
16
Cam
257532
$5,38 Unit Price incl. VAT
17
Spring
257533
$5,38 Unit Price incl. VAT
18
Plate
008808
$2,95 Unit Price incl. VAT
19
Spring plate M6
254485
$0,34 Unit Price incl. VAT
20
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
21
Fairing
CM00460100EB
Not Available
21
LH SIDE COVER MC3 682
CM00460150B5
Not Available
21
Fairing
CM00460100R7
Not Available
21
LH SIDE COVER MC3 686
CM00460150A7
Not Available
21
LH SIDE COVER MC3 94
CM0046015090
Not Available
21
Fairing
CM00460100F2
Not Available
21
Fairing
CM00460100GH
Not Available
21
LH SIDE COVER
CM00460150N7
Not Available
21
LH SIDE COVER MC3 280
CM00460150A3
Not Available
22
Air intake
957182000C
$6,08 Unit Price incl. VAT
23
Central cover
957268000C
Not Available
24
screw
008455
$2,25 Unit Price incl. VAT
25
Hook
265093
$10,67 Unit Price incl. VAT
26
Spring plate
184142
Not Available
27
Cover
CM00100200G9
Not Available
27
Cover
CM00100100BC
Not Available
27
Cover
CM00100200BD
Not Available
27
Cover
CM00100100NC
Not Available
27
Cover
CM00100100G9
Not Available
27
Cover
CM00100250V7
Not Available
27
Cover
CM00100200BC
Not Available
27
Cover
CM00100100R7
Not Available
27
Cover
CM00100150V7
Not Available
27
Cover
CM00100100RF
Not Available
27
Cover
CM00100100BD
Not Available
27
Cover
CM00100250G4
Not Available
27
Cover
CM00100200NC
Not Available
27
Cover
CM00100150N4
Not Available
27
Cover
CM00100200R7
Not Available
27
Cover
CM00100100A3
Not Available
27
Cover
CM00100200A3
Not Available
27
Cover
CM00100250N4
Not Available
27
Cover
CM00100150N9
Not Available
27
Cover
CM00100200RF
Not Available
27
Cover
CM00100250N9
Not Available
27
Cover
CM00100150G4
Not Available
28
Cover
581205000C
Not Available
28
Cover
581204000C
$14,39 Unit Price incl. VAT
29
Spark plug insp. door
957216000C
Not Available
30
Joint
575908
Not Available
31
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
32
Screw M6x16
272836
$3,70 Unit Price incl. VAT
33
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
34
Plate
008080
$5,38 Unit Price incl. VAT
35
screw 3,5x16
015859
$6,60 Unit Price incl. VAT
36
Plate
271760
Not Available
36
Plate
CM017404
$3,65 Unit Price incl. VAT
37
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
38
Lateral reflector
293556
Not Available
39
"kat" name plate
575736
$4,82 Unit Price incl. VAT
40
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
41
Self tapping screw 4,2x16
015911
$2,25 Unit Price incl. VAT
42
Spring plate
185802
$5,38 Unit Price incl. VAT
43
Name plate
62096300A7
Not Available
43
Name plate
62096300A6
Not Available
44
Name plate
62081700A8
Not Available
44
Name plate
62081700B1
Not Available
45
screw M4x14
018591
Not Available
46
Number plate holder (Lamiera)
580124
Not Available
47
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
48
Nut M4
020104
$1,26 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
