1
Engine displacement
50
2
Model
NRG
3
Year
0
4
Trim
NRG MC3 DD
5
Parts Catalog

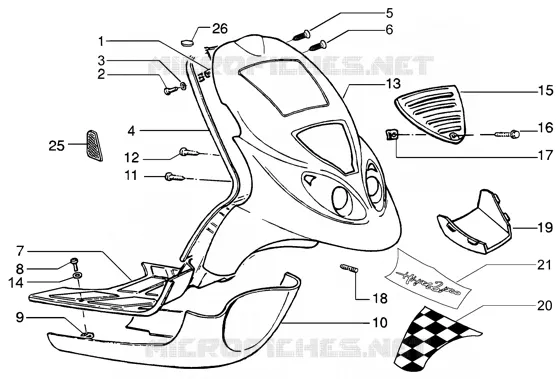

Front shield-footboard-spoiler
6
Parts Diagram
Parts Catalog
Cooling system
by
Oil tank
Front shield-footboard-spoiler
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
25
26
1
Spring plate
184142
Not Available
2
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
3
Flat washer 16x6,5x1,5
013880
$0,08 Unit Price incl. VAT
4
Counter shield
575157000C
$23,54 Unit Price incl. VAT
5
Screw m6x30
271891
$3,65 Unit Price incl. VAT
6
screw M6x14
296170
$2,95 Unit Price incl. VAT
7
Footrest
620069000C
Not Available
8
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Spoiler
62103400G9
Not Available
10
Spoiler
62103400EB
Not Available
10
Spoiler
561993
Not Available
11
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
12
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
13
shield
57712700R7
Not Available
13
shield
57712700RF
Not Available
13
shield
57712700GH
Not Available
13
shield
57712750A7
Not Available
13
shield
57712750A3
Not Available
13
shield
57712750B5
Not Available
13
shield
5771275090
Not Available
13
shield
57712750N7
Not Available
13
shield
57712700EB
Not Available
14
Washer
143253
Not Available
15
Water cooler grille
CM00510100F2
Not Available
15
Grid
CM00510100BC
$35,59 Unit Price incl. VAT
15
Water cooler grille
CM00510100NC
$47,91 Unit Price incl. VAT
15
Water cooler grille
CM00510100R7
$27,64 Unit Price incl. VAT
15
Water cooler grille
CM00510100G9
Not Available
15
Grid
CM00510150N9
Not Available
16
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
17
Spring plate
184142
Not Available
18
screw
463874
Not Available
19
Air deflector
575154
Not Available
20
Name plate
62080500A7
Not Available
20
Name plate
62080600A6
Not Available
20
Name plate
62080600A7
Not Available
20
Name plate
62080500A6
Not Available
21
"Pure Jet" plate
62082400A8
Not Available
21
"Pure Jet" plate
62082400A5
Not Available
25
Grid
5753380043
$1,31 Unit Price incl. VAT
25
Grid
5753370043
$1,31 Unit Price incl. VAT
26
Cover
483859
$0,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
