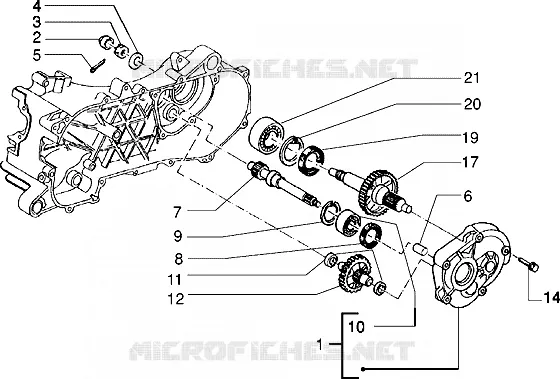

Rear wheel shaft
1
2
3
4
5
6
7
8
9
10
11
12
14
17
19
20
21
1
Wheel hub cover with U.P.
4874805
$43,90 Unit Price incl. VAT
2
Nut hold cap
194423
$0,48 Unit Price incl. VAT
3
Nut M16x13
563728
$1,42 Unit Price incl. VAT
4
Ring
159347
$0,48 Unit Price incl. VAT
5
Split pin
012789
$0,16 Unit Price incl. VAT
6
Compensator ring
478197
$8,31 Unit Price incl. VAT
7
Driven pulley shaft
4795935
Not Available
8
Gasket ring
480066
$5,99 Unit Price incl. VAT
9
Snap ring
480953
$3,70 Unit Price incl. VAT
10
Bearing
942135
Not Available
11
Shim washer
288639
$2,99 Unit Price incl. VAT
12
Idle gear assy
4802185
$236,66 Unit Price incl. VAT
14
Screw w/ flange M6x40
414834
$0,09 Unit Price incl. VAT
17
Rear wheel axle
4874855
$375,68 Unit Price incl. VAT
17
Drive shaft assy
4874845
Not Available
19
Gasket ring
478498
$8,12 Unit Price incl. VAT
20
Circlip
006647
$1,10 Unit Price incl. VAT
21
Bearing 20x47x14
434735
$7,12 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
