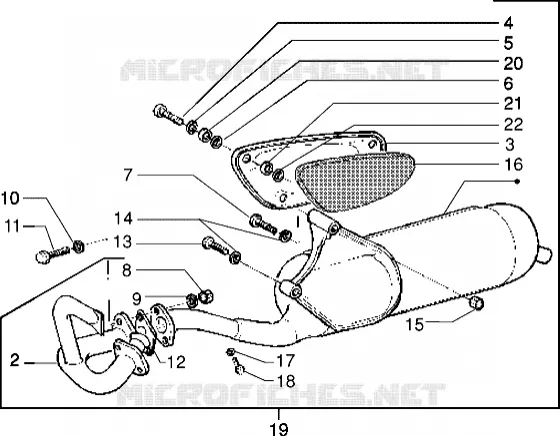

Catalytic silencer (Vehicle with rear drum brake)
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
2
Exhaust pipe
825681
Not Available
3
Protection
825783
Not Available
4
screw M5x10
433800
$0,19 Unit Price incl. VAT
5
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
6
Washer
825775
Not Available
7
screw
483743
Not Available
8
Nut
436501
$3,65 Unit Price incl. VAT
9
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
10
Washer
709003
$0,08 Unit Price incl. VAT
11
Bolt
436502
Not Available
12
Gasket
259198
$4,32 Unit Price incl. VAT
13
Screw m8x50
432334
$3,65 Unit Price incl. VAT
13
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
14
Flat washer
483164
Not Available
15
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
16
Guard
825784
$10,55 Unit Price incl. VAT
17
Washer ø10.2xø15x2
016195
$2,95 Unit Price incl. VAT
18
Screw w/ flange M10
433122
$3,65 Unit Price incl. VAT
19
Muffler, assy.
826290
Not Available
20
Bowl
482282
$4,82 Unit Price incl. VAT
21
Washer
103556
Not Available
22
Spacer
825824
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
