1
Engine displacement
50
2
Model
NRG
3
Year
0
4
Trim
NRG MC3
5
Parts Catalog

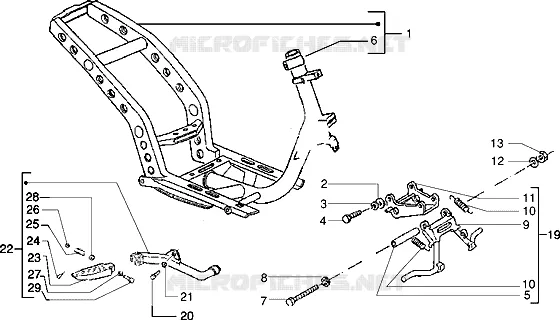

Chassis-Central stand
6
Parts Diagram
Parts Catalog
Catalytic silencer (Vehicle with rear drum brake)
by
Engine
Chassis-Central stand
1
2
3
4
5
6
7
8
9
10
10
11
12
13
19
20
21
22
23
24
25
26
27
28
29
1
Not available
5759075
Not Available
2
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
3
Plain washer 8,2x20x2,5
013861
$0,25 Unit Price incl. VAT
4
Screw m8x30
597151
Not Available
5
Pin
583603
$2,17 Unit Price incl. VAT
6
Lock body
259420
$11,69 Unit Price incl. VAT
7
screw
030080
$3,65 Unit Price incl. VAT
8
Gasket ring
271695
$0,09 Unit Price incl. VAT
9
Central stand
581538
Not Available
10
Spring
278940
$1,02 Unit Price incl. VAT
11
Maintenance
272929
$9,42 Unit Price incl. VAT
12
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
13
Nut M8x6,5
020108
$0,08 Unit Price incl. VAT
19
Central stand, assy.
581537
$72,90 Unit Price incl. VAT
20
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
21
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
22
Footrest
CM004702
Not Available
22
Footrest
CM004701
Not Available
23
Foot rest
295451
$6,35 Unit Price incl. VAT
24
Elastic spring
259933
$0,08 Unit Price incl. VAT
25
Premisphere spring
295590
$4,82 Unit Price incl. VAT
26
Ball D6
295591
$5,38 Unit Price incl. VAT
27
Rubber mat stop foot rest
295592
Not Available
28
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
29
Pin
295593
$4,82 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
