1
Engine displacement
50
2
Model
NRG
3
Year
0
4
Trim
NRG MC3
5
Parts Catalog
Carburettor
6

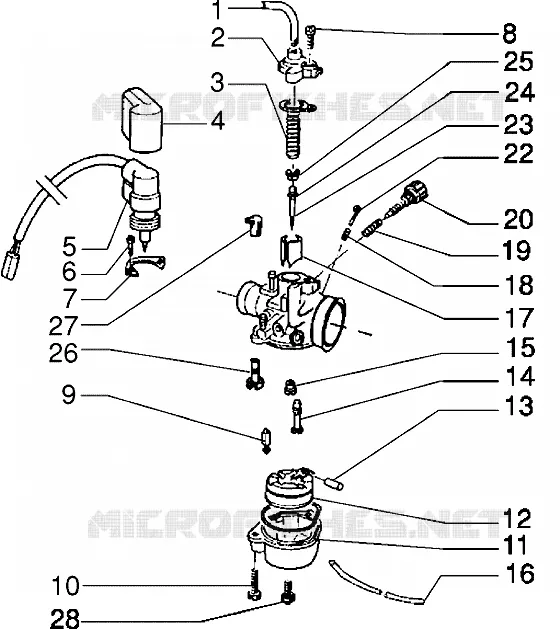

Parts Diagram
Parts Catalog
Carburettor
by
Air cleaner (Vehicle with rear hub brake)
Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
25
26
27
28
1
Baffle tube
113903
$4,32 Unit Price incl. VAT
2
Gas valve cover
431654
$3,25 Unit Price incl. VAT
2
Gas valve cover
CM109001
$114,75 Unit Price incl. VAT
3
Gas valve spring
435694
Not Available
3
Spring
288875
Not Available
4
Guard
288883
Not Available
4
Cap
435704
$0,54 Unit Price incl. VAT
5
Starter
82567R
Not Available
5
Starter device
82566R
Not Available
5
Starter device
CM106001
Not Available
6
Sec. screw
435686
Not Available
6
screw
289575
$0,68 Unit Price incl. VAT
7
Plate
288863
$1,10 Unit Price incl. VAT
7
Plate
435685
$5,38 Unit Price incl. VAT
8
screw
288865
$0,33 Unit Price incl. VAT
8
Sec. screw
435688
$2,29 Unit Price incl. VAT
9
Jet Needle
435708
Not Available
9
Jet Needle
482915
Not Available
10
Float chamber fixing screw
288862
$0,62 Unit Price incl. VAT
10
Sec. screw
435684
$2,95 Unit Price incl. VAT
11
Float chamber
827037
Not Available
11
Complete reservoir
484704
$16,57 Unit Price incl. VAT
12
Float
435703
Not Available
12
Float cpl.
482916
$12,66 Unit Price incl. VAT
13
Pin
435702
Not Available
13
Float pin
288881
$0,97 Unit Price incl. VAT
14
Starter jet 3/8
431635
Not Available
14
Starter jet
CM102702
Not Available
15
Main jet
CM101822
$4,32 Unit Price incl. VAT
15
Main jet 56
CM101707
$7,02 Unit Price incl. VAT
15
Main jet 68
CM101719
$5,67 Unit Price incl. VAT
16
Float chamber dump pipe L=130
432071
Not Available
17
Gas valve
434105
Not Available
17
Gas valve
828336
Not Available
18
Spring
435697
$5,38 Unit Price incl. VAT
18
Spring
085285
$4,82 Unit Price incl. VAT
19
Spring
152608
$0,63 Unit Price incl. VAT
19
Spring
435699
Not Available
20
Adjusting screw
288880
$6,33 Unit Price incl. VAT
20
Adjusting screw
825155
$3,65 Unit Price incl. VAT
22
Air adjuster screw
CM107701
$6,60 Unit Price incl. VAT
22
screw
CM110501
$4,82 Unit Price incl. VAT
22
Air adjuster screw
CM107702
$3,65 Unit Price incl. VAT
23
Conical pin
CM107510
$14,18 Unit Price incl. VAT
23
Conical pin
CM107814
Not Available
24
Ring
288872
$0,62 Unit Price incl. VAT
24
O-ring
435692
Not Available
25
Lock
CM108401
$5,38 Unit Price incl. VAT
25
Conical pin clip
288873
$1,20 Unit Price incl. VAT
26
Idle jet
CM102010
Not Available
26
Idle jet
CM102103
$5,00 Unit Price incl. VAT
26
Idle jet
CM102111
$4,32 Unit Price incl. VAT
27
Gas valve
CM108901
Not Available
27
Complete oil valve
436206
$8,68 Unit Price incl. VAT
28
screw
432456
$2,40 Unit Price incl. VAT
28
screw
435707
Not Available

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
