by

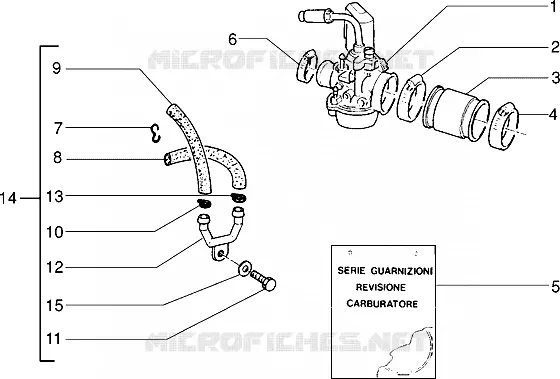

Carburettor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Carburettor
483322
Not Available
1
Carburettor
486164
Not Available
1
Carburettor
485960
Not Available
1
Carburettor
486387
Not Available
1
Carburettor
480902
Not Available
2
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
3
pipe
436096
$3,32 Unit Price incl. VAT
4
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
5
Carburettor gasket kit
498409
$9,37 Unit Price incl. VAT
5
Gasket set
498475
$23,53 Unit Price incl. VAT
6
Hose clamp
825865
$0,57 Unit Price incl. VAT
7
Hose clamp
433956
Not Available
7
Hood for carburettor
832186
$4,80 Unit Price incl. VAT
8
pipe
484259
Not Available
8
Air deflector
289871
Not Available
9
pipe
433954
Not Available
9
Head-carb.by-pass pipe
484260
$1,57 Unit Price incl. VAT
10
Hose clamp
CM002901
$0,09 Unit Price incl. VAT
11
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
12
Joint
433951
Not Available
13
Hose clamp
CM002901
$0,09 Unit Price incl. VAT
14
Heater kit
434970
Not Available
15
Spring washer
709047
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
