by

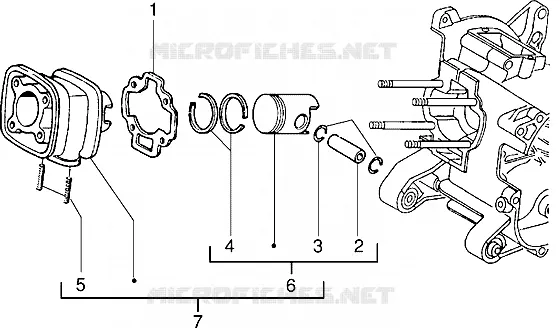

Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
1
Cylinder base gasket
286810
$0,24 Unit Price incl. VAT
1
Gasket sp0,4
827301
$2,23 Unit Price incl. VAT
1
Gasket sp0,8
829633
$2,71 Unit Price incl. VAT
1
Gasket sp0,6
827303
$2,61 Unit Price incl. VAT
2
Piston pin
239404
$1,57 Unit Price incl. VAT
3
Stop ring
239455
$0,44 Unit Price incl. VAT
4
Gasket ring
825416
$3,28 Unit Price incl. VAT
5
Stud bolt M6
239397
$0,24 Unit Price incl. VAT
6
Piston assy 1cat.(M)
4878020001
$39,33 Unit Price incl. VAT
6
Pist.-wrist pin assy.
4844070002
Not Available
6
Piston assy 2cat.(N)
4878020002
$45,83 Unit Price incl. VAT
6
Piston assy 3cat.(O)
4878020003
$39,33 Unit Price incl. VAT
6
Piston assy 1M
825182
Not Available
6
Piston assy 2M
825185
Not Available
7
Cyl.unit
487803
Not Available
7
Cyl.unit
484621
Not Available
7
Cil.pis.as.
487807
Not Available
7
Cyl.unit
487793
Not Available
7
Cil.pis.as.
487855
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
